Page | 7

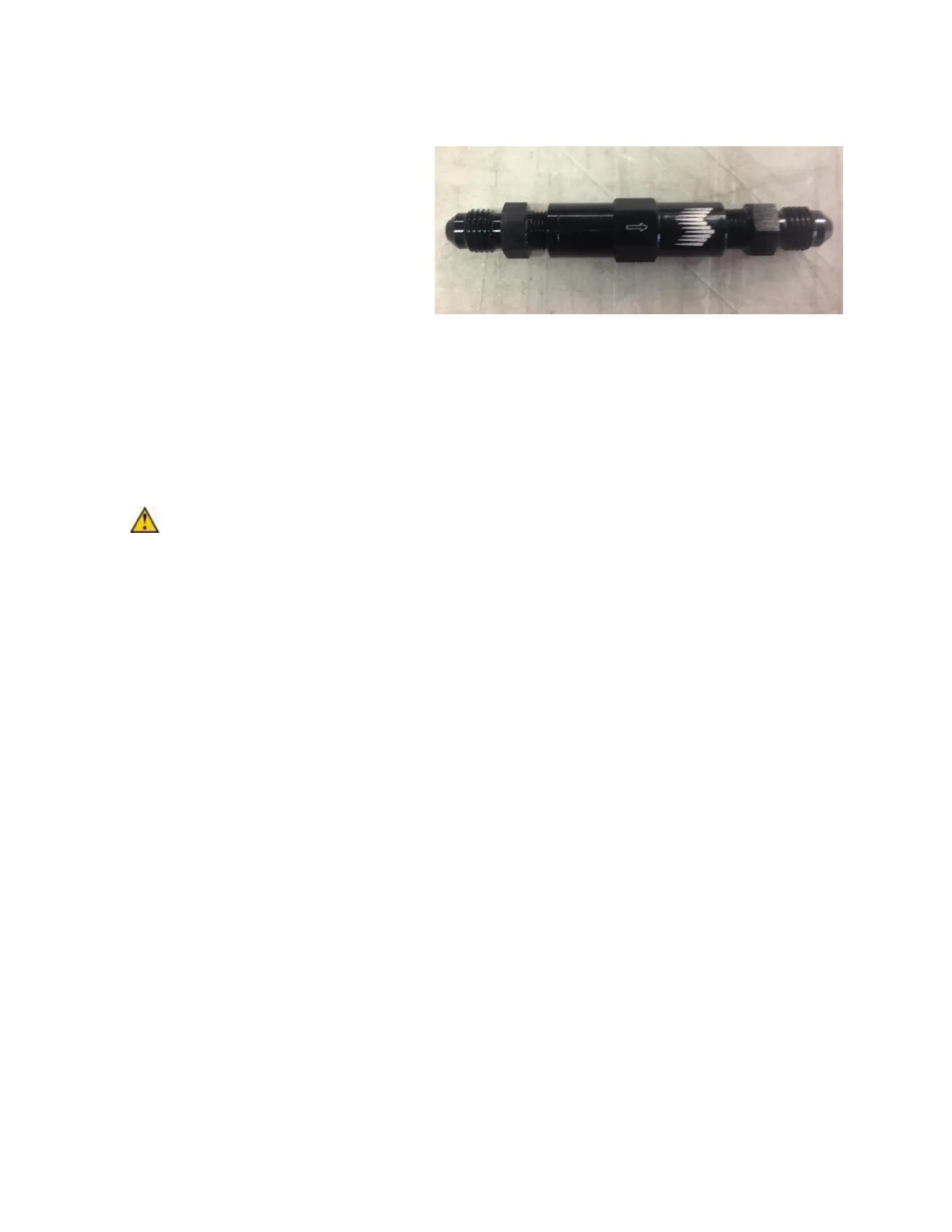

Braided line kits - Fit the NPT thread to
4AN adapters in each side of the check
valve using E-6000 sealant on the NPT
threads only. Connect the 5 foot section of
braided line from the pump outlet to check
valve inlet and the 1’ or 2’ section of
braided line from the check valve outlet to
the nozzle holder inlet.
When running the high pressure tubing or braided line from the in line check valve to the nozzle holder
location, care should be taken to avoid extreme heat such as exhaust manifolds as well as any area
that may abrade the line due to engine vibration and torque over. Also, ensure the lines are clear of the
serpentine belt system.
Step 7 Electrical / Injection Settings
CAUTION: Disconnect the negative battery terminal while connecting wires to prevent electrical
fire or damage to controller.
To complete your water-meth install locate the part# for your injection kit and
follow the subsequent electrical wiring diagram/instructions. The wires on the
level sensor / LEDs are interchangeable and it does not matter which wire
connects to ground 12V source.
