8
HARDWARE FEATURES

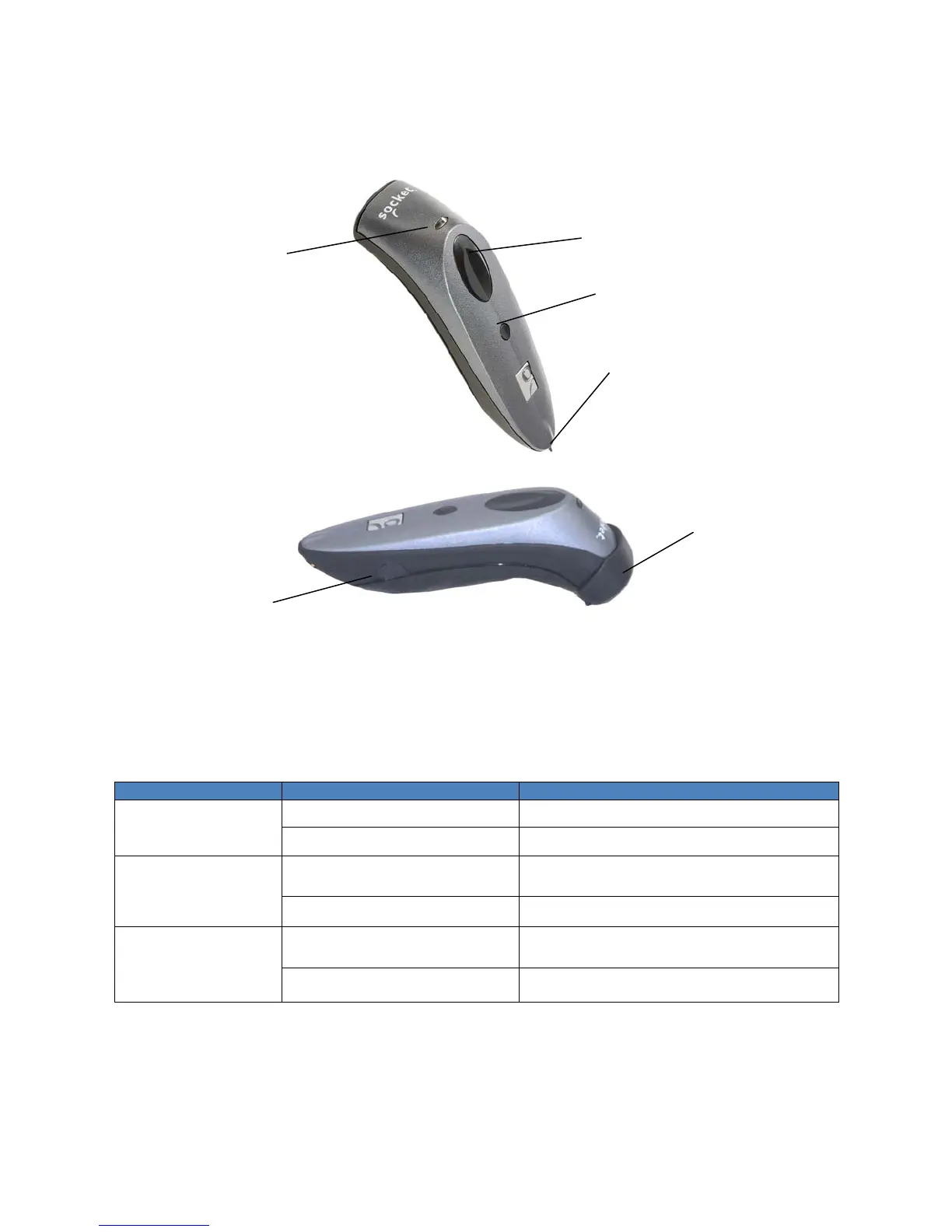

Product Diagram
Status Indicator LED
LED LED Activity Meaning
Bluetooth (Blue) 1 blink per second Bluetooth radio is on but not connected
1 blink per 3 seconds CHS connected to host device
Good Read (Green) On
Data successfully scanned and transmitted to
host device
On and connected to charger Battery full
Battery (Red) Blinking 20% or less battery capacity remaining
Off Off or Good Battery status
Trigger button
Power button
Stylus tip
Status indicator LED
Power connector
(For 7Pi remove rubber cap to
access)
Protective rubber bumper
(7Pi only)
