9
(3) Check the rotation of the saw blade shaft (arbor). Change over two conductors in
junction box if the direction of rotation does not consist with the direction of the label
on the saw blade safety cover.
3.4 Filling coolant
(1) Pour the diluted sawing oil on the table of the machine. The solution will flow into
the coolant tank.
(2) The dilute ratio (water: oil) is 5:1 for hard or high alloy steel and 10:1 for mild steel.

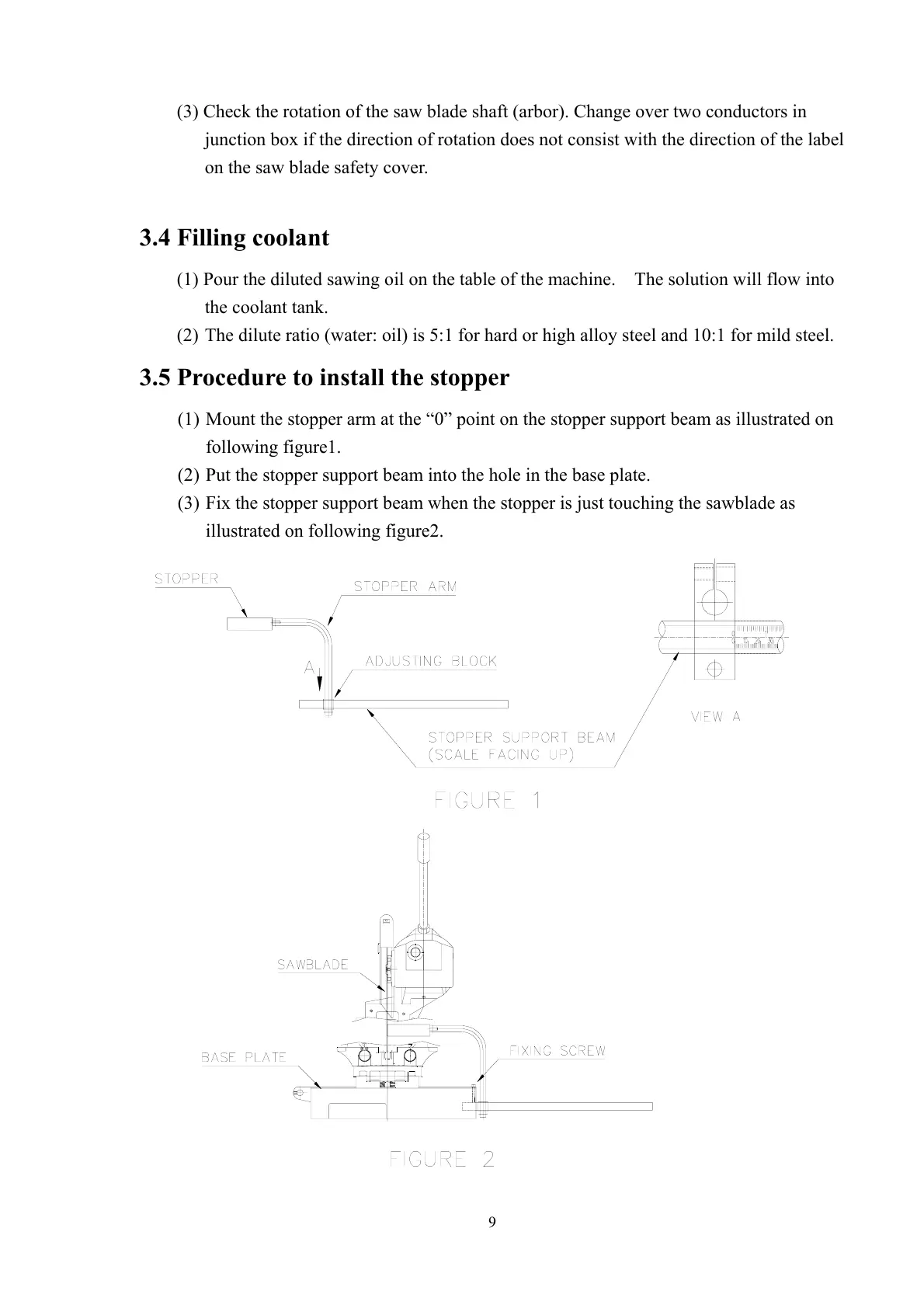

3.5 Procedure to install the stopper
(1) Mount the stopper arm at the “0” point on the stopper support beam as illustrated on
following figure1.
(2) Put the stopper support beam into the hole in the base plate.
(3) Fix the stopper support beam when the stopper is just touching the sawblade as
illustrated on following figure2.
