d. Brake
DESCRIPTION OF COMPONENTS AND PARTS
4
3
4
3
2

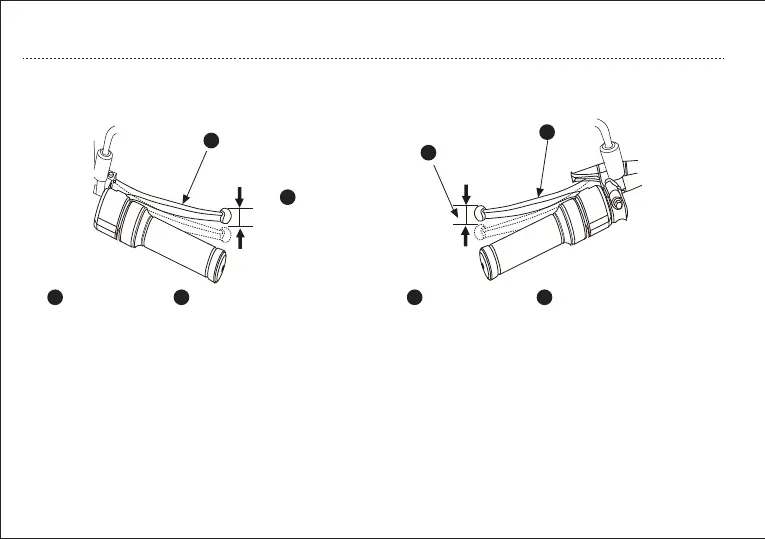

Front Brake Lever Front Brake Lever Free Stroke Rear Brake Lever Rear Brake Lever Free Stroke
2
1
1
Front Brake
The brake is an impor tant safety component of an
elect ric vehicle and should always be properly
adjusted.The distance that the end of the f ront brake
lever moves from the start of braking to the time when
the f ront wheel just feels thebrake dragging is called
the f ront brake free stroke.
Measure the distance that the end of the front brake
lever can travel.Free stroke should be: 10-20mm
Rear Brake
Park the vehicle on solid level ground with the main
stand. The distance the rear brake lever moves from
the start of braking to when the rear wheel just feels
the brake dragging is called the rear brake lever free
stroke.
Rear brake lever free st roke should be:10-20mm
