socomec ATys C30 User Manual

Controller ATyS
CONNECTIONS
41
SOCOMEC - Réf.: 532 214 C

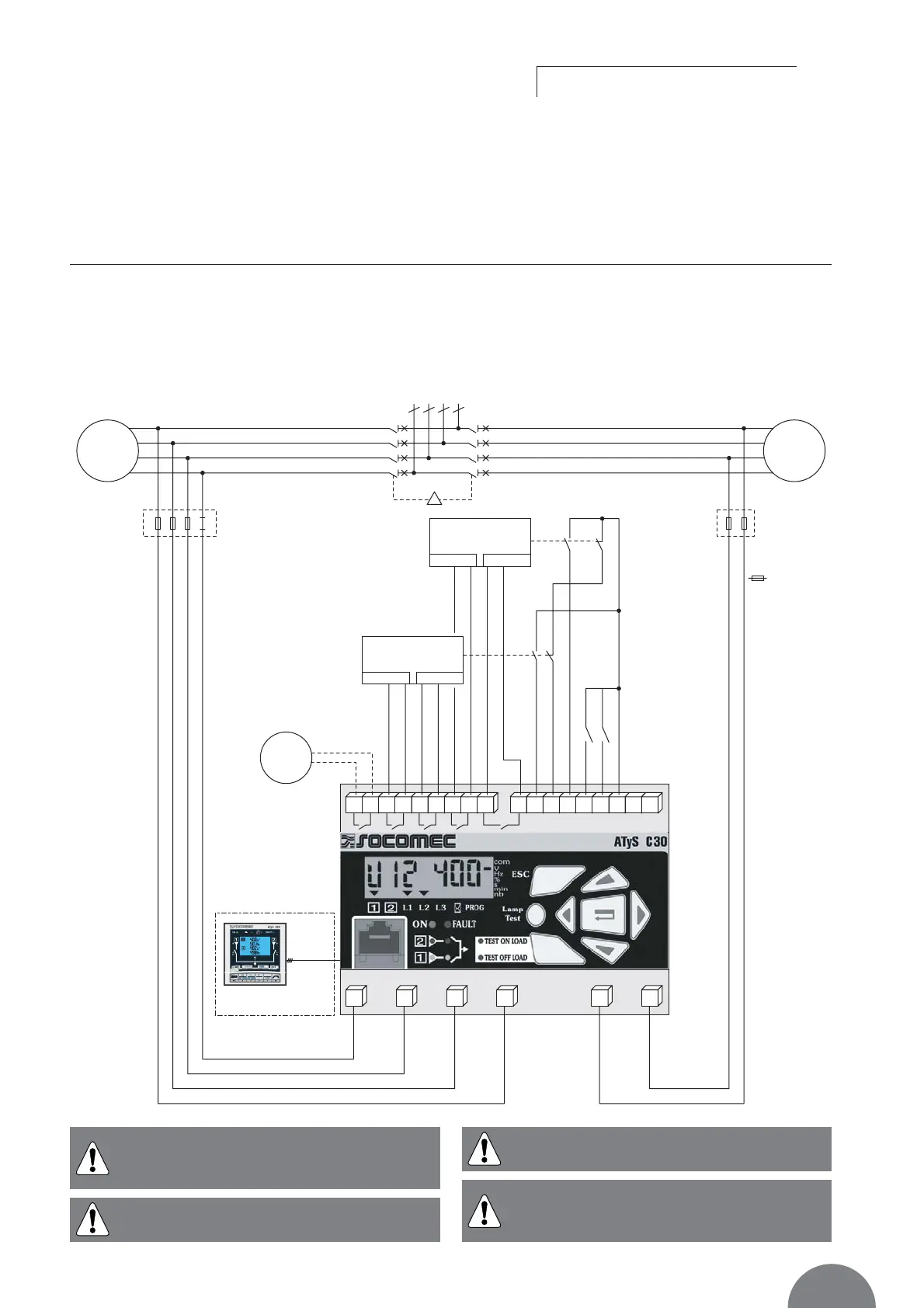

Control circuits
400 Vac (P-P) APPLICATION WITH NEUTRAL CONDUCTOR
CIRCUIT BREAKER TYPE TECHNOLOGY
> Electrical interlocking not integrated
Breaker 1
OPENING
Breaker 2
13 14 23 24 33 34 43 44 53 54
I1 I2
301 302 303 304 305 306
103
F1, F2
Fuse protection
230 Vac 5 A
LOAD
205
L3
203
L1
106
L1
105
L2
104
L3N
GE
L1
L2
L3
1
N
L1
L2
L3
N
2
Cable
RJ45 8/8
ONLY ON ATyS C30
F2F1
ATyS D10 or D20
remote interface
Breaker 1
CLOSING
Breaker 2
DC-* DC+*
This drawing is not including the electrical
interlock.
ATYS 440 B GB
Remote interfaces maximum connection
cable (RJ45) = 3 m.
Maximum control cables lenght = 10 m.
In case of longer distance, insert control
relays.
It might be necessary for some breakers not
to set up OMR and OMF timers to 0.
(refer to programming)
* Only on DC versions.
• Configure the type of control logic in breaker
(see Programming chapter)
• Automatic Power supply 203-205 or 104-106
(see power supply chapter).
