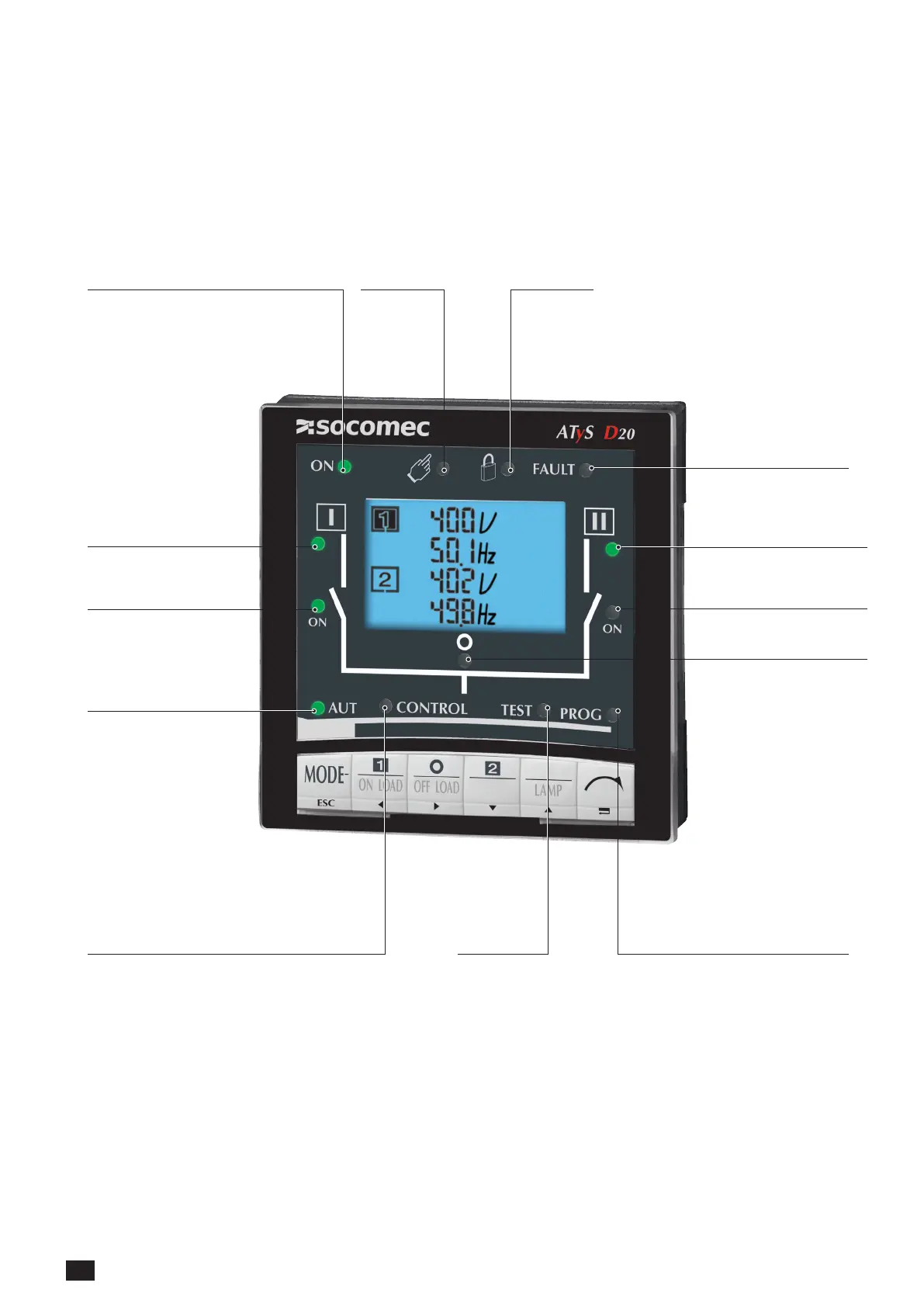

4.2. Display ATyS D20
The ATyS D20 allows remote display of transfer switchpositions, source availability, operational modes and metering.
It also allows the control of product control and test operations as well as access to programming of all system
parameters.The display of the ATyS product is inhibited when connected to the remote interface.
(Compatible only with ATyS p and the former ATyS 6e, ATyS 6m, ATyS C30 and ATyS M 6e).
Power on
Source 1 available
Manuel
mode
active
Padlock*
• ATyS product
fault, non-conform
switching
• Possible to reset
after fault is cleared.
Switch off the power
supplies of the master
product for 3 minutes.
Transfer switch in
position I
Transfer switch
in automatic mode
Control mode active Test mode active Programming mode active
Transfer switch in
position 0
Transfer switch in
positionII
Source 2 available
