socomec ITYS ITY3-EX100B - Page 34

ITYS 6-10 kVA - 551431A - SOCOMEC
34
EN

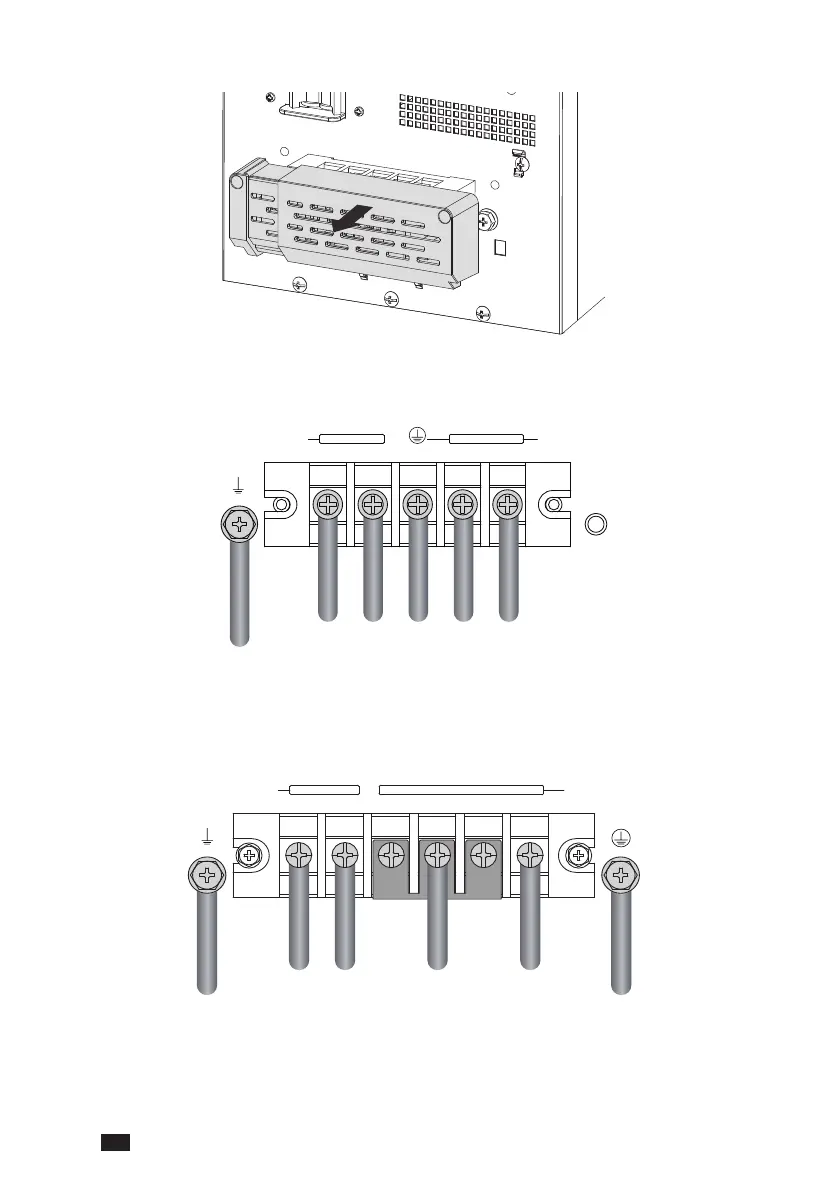

1. Remove the cover of terminal block.
2. Connect the AC cable to terminal blocks:
1-1 model:
L
N
AC OUT
L N
AC IN
3-1 model:
1-1 conguration
Short ‘UPS input terminal L1/L2/L3’ with ‘busbar’, then connect the AC
cable.
L
N
AC OUT
L1
L2 L3
N
AC IN
