Dimensions
Size
mm
A 2675
B 1755
C 591
D 640
E 670
2.2.1 Tightening values:
Component denomination
Unit of
measurement
Value
Tensioning bolt nut Nm
75
0
+ nut rotation 60° - 65°
Accumulator cover screw Nm
1100
Accumulator screw Nm
1100
Articulation plug Nm
150
Variator screw Nm
140
Block Screw Nm
250
2.3 Optimal environmental working conditions:
DENOMINATION
Unit of
Measurement
VALUE
(between)
Temperature °C [ -5 ; +45 ]
Humidity % [ 40 ; 90 ]

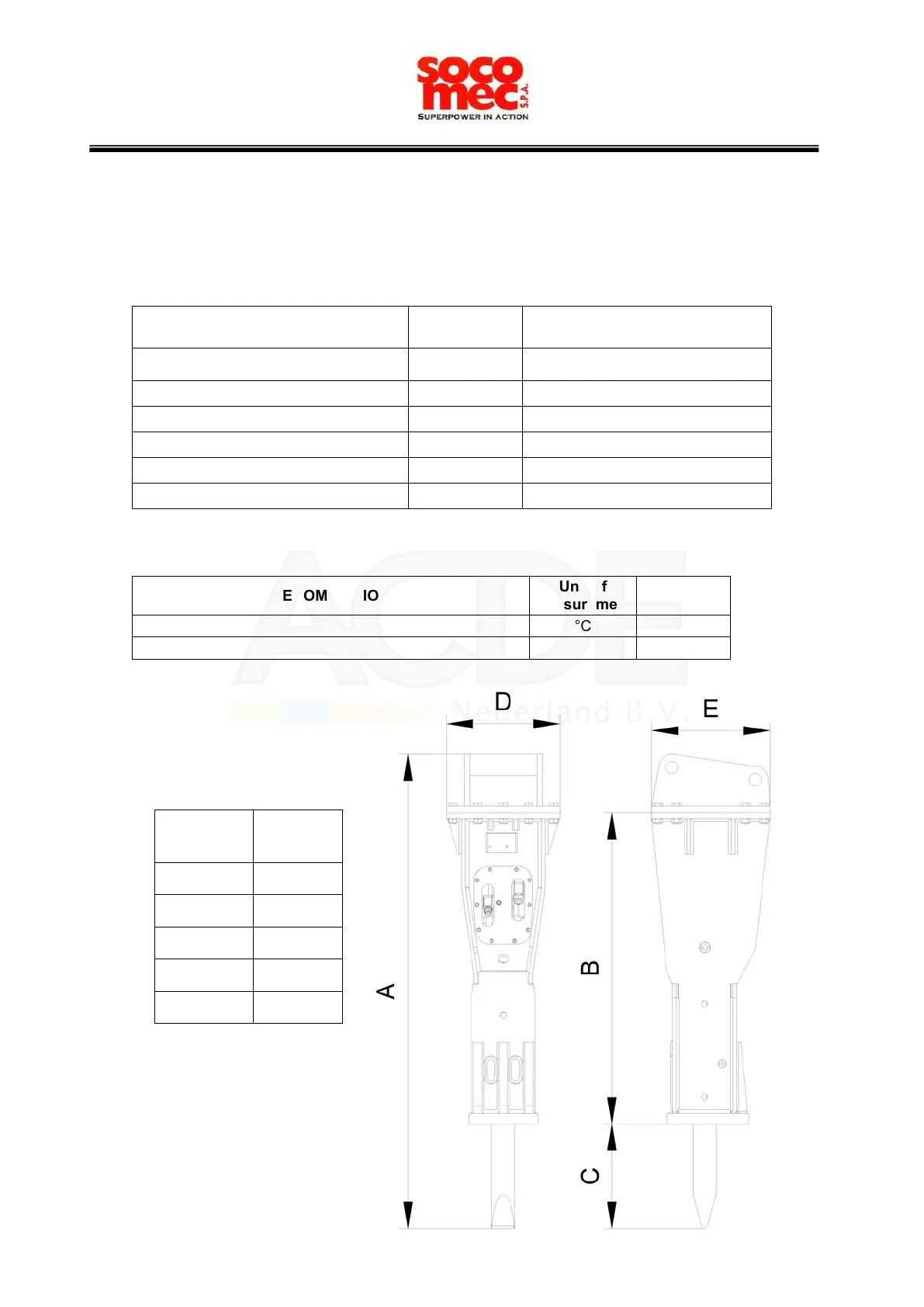

2.4 Overall dimensions
MDO 1600 TS
TECHNICAL FEATURES
10
Page
of
48
