Wire EDM Machine Operation Chapter 6
Copyright November, 98 Page 6-9 Sodick Inc.
CRT(JOB 1 CNT2X SKIM 1 CUT REVERSE)
N0020 T85 (Low Flush)
N0021 C623
N0022 G41 H053
N0023 G51 A.5000 G01 Y.25
N0024 X-.15
N0025 G03 X-.25 Y.15 I0. J-.1
N0026 G01 Y-.15
N0027 G03 X-.15 Y-.25 I.1 J0.
N0028 G01 X.15
N0029 G03 X.25 Y-.15 I0. J.1
N0030 G01 Y.15
N0031 G03 X.15 Y.25 I-.1 J0.
N0032 G01 X0.
N0033 G50 A0. G40 Y0.
N0034 M02
PROGRAM EXAMPLE 2

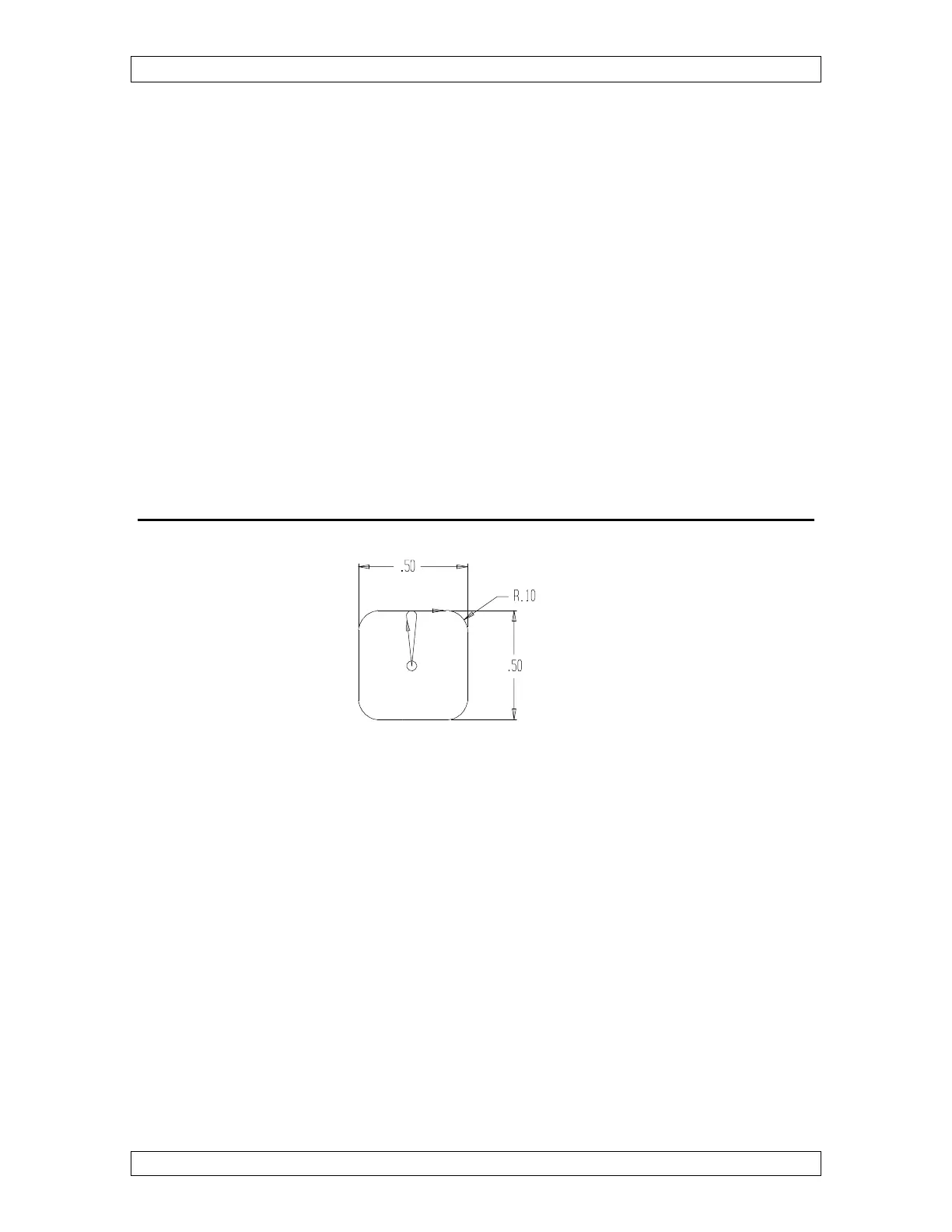

The below program is for the same shape as prior, but uses a blend on radius of .1000”.
N0001
N0002 G54 G90
N0003 G92 X0. Y0. G29
N0004 T84
N0005 T94
N0006 C451
N0007 G42 H082
CRT(JOB 1 CNT2X ROUGH CUT FORWARD)
N0008 G52 A.5000 G01 X-.1 Y.15
N0009 G02 X0. Y.25 I.1 J0.
N0010 G01 X.15
N0011 G02 X.25 Y.15 I0. J-.1
N0012 G01 Y-.15
N0013 G02 X.15 Y-.25 I-.1 J0.
N0014 G01 X-.15
N0015 G02 X-.25 Y-.15 I0. J.1
N0016 G01 Y.15
