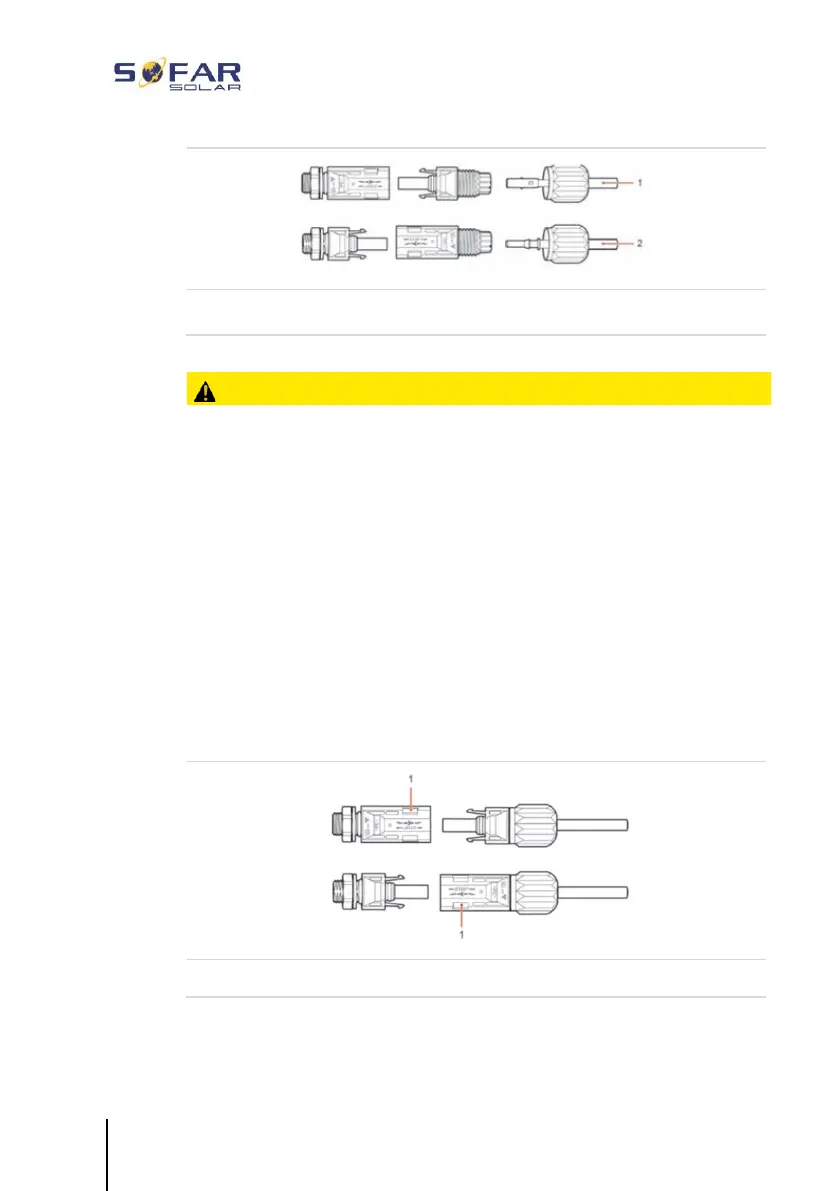

Sofarsolar HYD 15KTL-3PH - Page 51

ELECTRICAL CONNECTIONS
HYD 5K...20KTL-3PH 51
①
Positive power cable
②
Negative power cable
CAUTION
Danger of reverse polarity!
• Ensure that the polarity is correct before plugging into the DC
connections!
5. Insert the crimped DC cables into the corresponding connector
housing until you hear a “clicking” sound.
6. Re-screw the cable glands to the connector housing.
7. Insert the positive and negative connectors into the corresponding
DC input terminals of the inverter until you hear a “clicking” sound.
①
Locking
Note: Insert the protective caps into the unused DC connections.
