ELECTRICAL CONNECTIONS
HYD 5K...20KTL-3PH 55

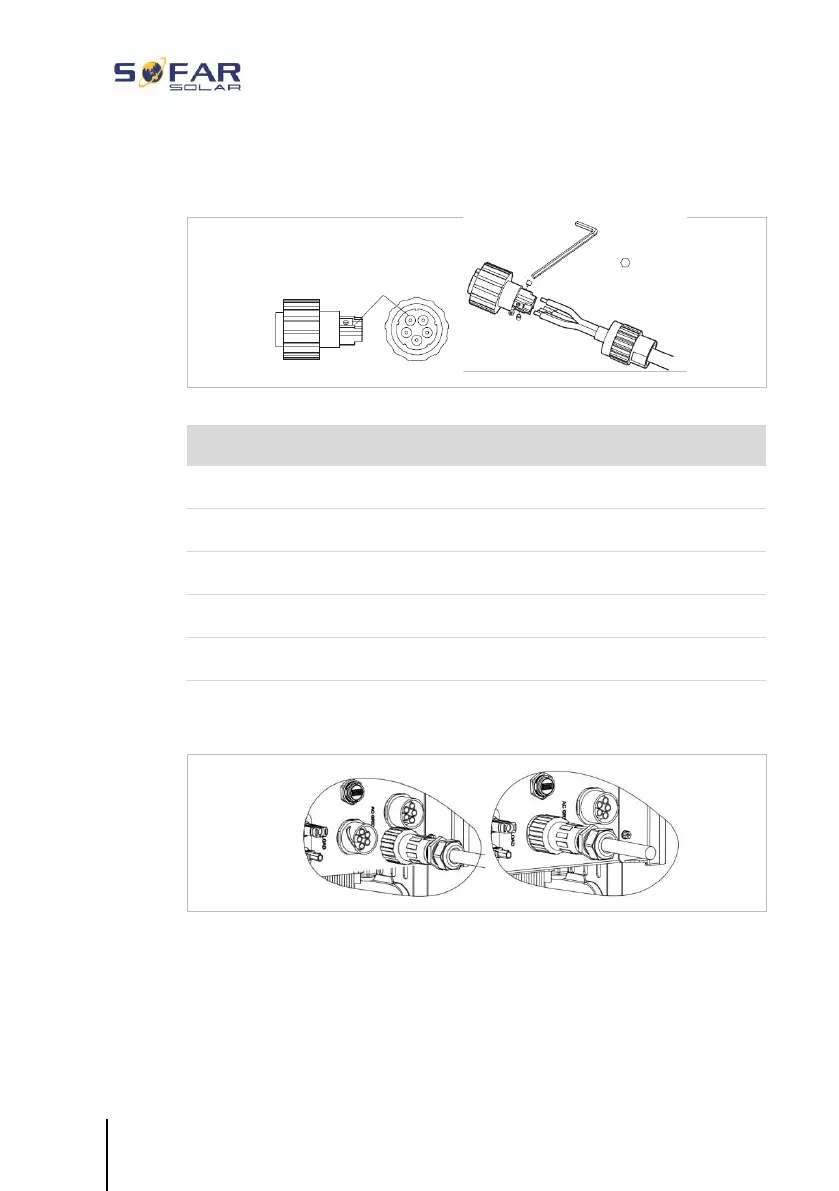

3. Connect the AC cable in accordance with the following
requirements and tighten the terminal using the Allen key.
Connection
Cable
L1
Phase 1 (brown)
L2
Phase 2 (black)
L3
Phase 3 (grey)
N
Neutral conductor (blue)
PE
Earthing cable (yellow-green)
4. Assemble the connector housing and screw the cable gland tight.
5. Connect the AC connector to the AC connection of the inverter by
turning it clockwise until it locks into place.
