SOFAR 1.1K~3.3KTL-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
The operation information (generated energy, alert, operation status) of the
inverter can be transferred to PC or uploaded to the server via Wi-Fi. You can
register on the website.
http://www.solarmanpv.com/portal/Register/Regi_Pub.aspx
Using the Wi-Fi S/N number(NOTE3), then you can login the website:
http://www.solarmanpv.com/portal/LoginPage.aspx to remote monitors the inverter.
B. Communication between multiple inverters and one PC:
1. RS485

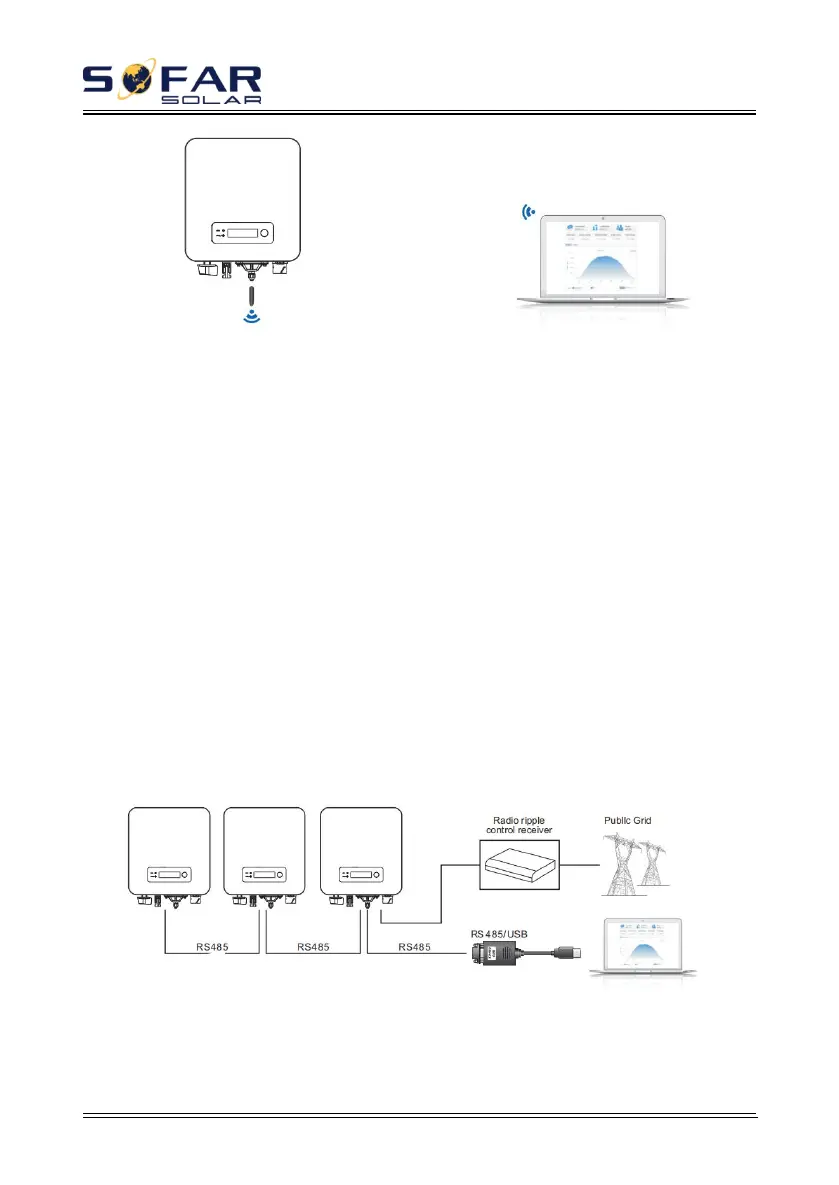

Refer to the following figure: RS485 wires are connected in parallel between
inverters, refer to section 4.5 of this manual for wire connection methods. Connect
the TX+ and TX- of the inverter to the TX+ and TX- of the RS485→USB adapter;
connect the USB port of the adapter to the computer. A maximum of 31 inverters
can be connected in one daisy chain.(NOTE2)
Figure 4-41
2. WI-FI/GPRS/Ethernet
Refer to the figure shown below: (wireless function required for the
