Sojet Elfin II - Double Printheads Installation; Anti-Shock Mechanism & Plate (Optional)

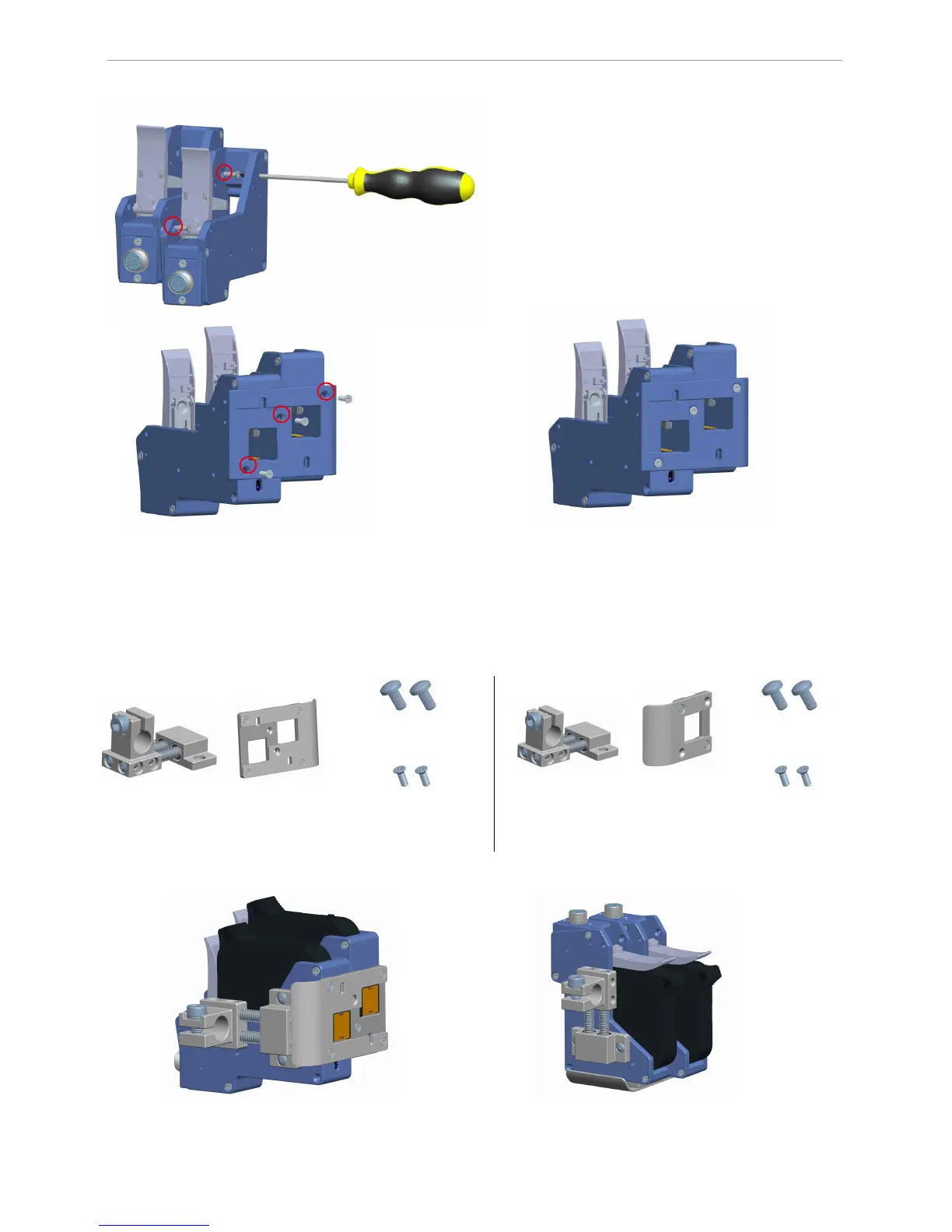

Fix the two printheads together by 2pcs M3*10
screws；(The diameter of the screwdriver needs to
be less than 3.5mm.)
Fasten the anti-shock plate on the printheads by
3pcs M3*10 screws.
Double printheads installation finish.
Note: While install anti-shock plate, its direction can
be adjusted according to production line direction.
08
2.1.3 Double Printheads Installation
2.1.4：Anti-Shock Mechanism & Plate (Optional)
Part List
Installation
Single Printhead
Combined Printheads
Note: Installation for single printhead is the same as combined printheads.
Note: The installation direction can be adjusted.
Note: The anti-shock mechanism and plate is optional, according to demand.
Combined printheads side printing
Note: The installation direction can be adjusted.
Combined printheads downward printing
Anti-Shock
Mechanism
Anti-Shock Plate
M4*8 screws
(fix printhead)
M3*10 screws
(fix anti-shock plate)
Anti-Shock
Mechanism
Anti-Shock Plate
M4*8 screws
(fix printhead)
M3*10 screws
(fix anti-shock plate)
