Solace IC4 - Page 14

87
87A
85
30
86

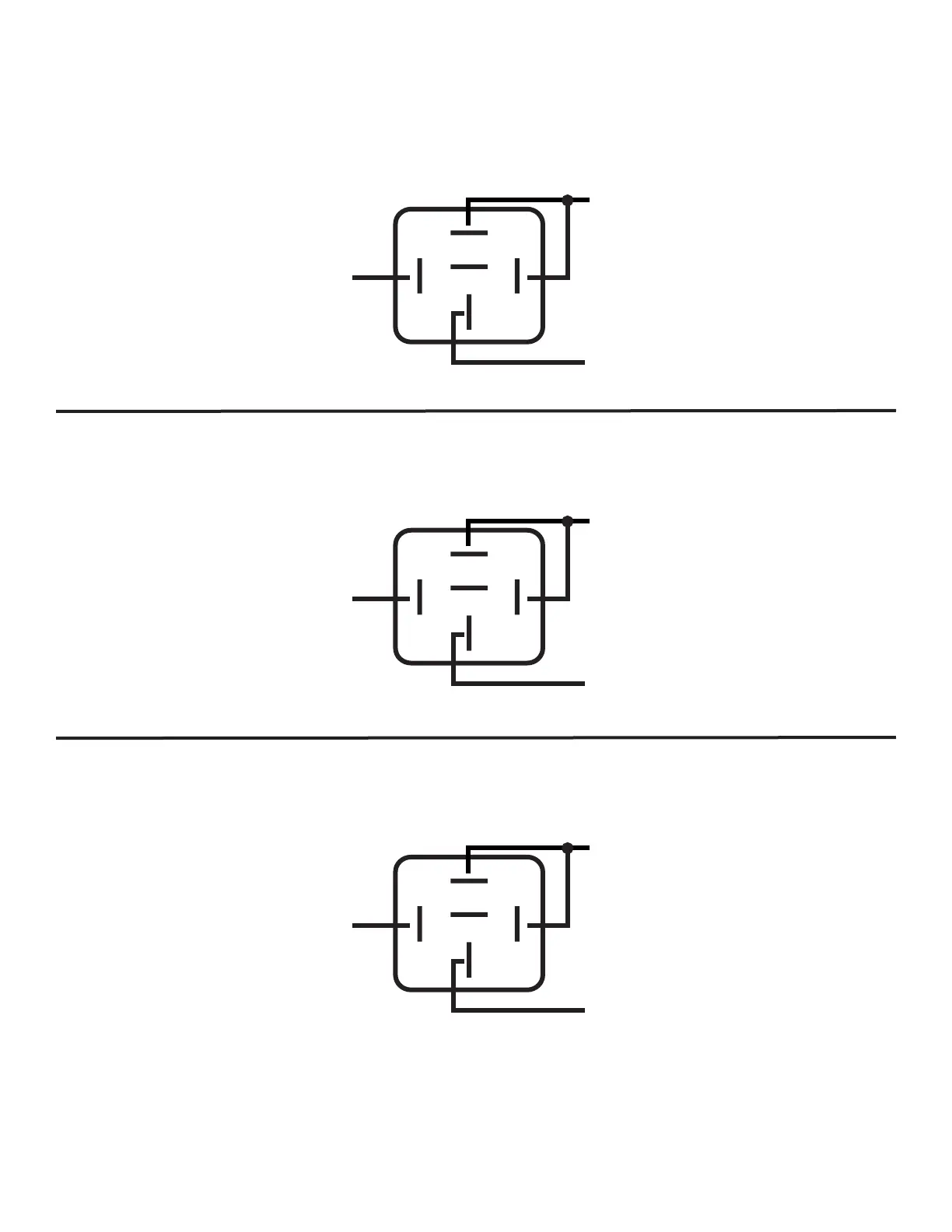

SWITCHING A NEGATIVE (-) ACCESSORY TO A POSITIVE (+) ACCESSORY
ORANGE/BLACK (-) ACCESSORY OUTPUT
12 VOLTS (+)
TO 2ND (+) ACCESSORY WIRE ON VEHICLE
RELAY DIAGRAMS CONTINUED
87
87A
85
30
86
SWITCHING A NEGATIVE (-) OUTPUT TO A POSITIVE (+) OUTPUT
NEGATIVE (-) OUTPUT
12 VOLTS (+)
TO DESIRED POSITIVE (+) OUTPUT
87
87A
85
30
86
SWITCHING A POSITIVE (+) OUTPUT TO A NEGATIVE (-) OUTPUT
POSITIVE (+) OUTPUT
CHASSIS GROUND (-)
TO DESIRED NEGATIVE (-) OUTPUT
