Solace IC4 - Starter Kill;Anti-Grind; Key Switch

RELAY DIAGRAMS CONTINUED
87
87A
85
30
86
HIGH CURRENT GROUND OR POSITIVE
NEGATIVE (-) SIGNAL FEED
CHASSIS GROUND (-) OR 12VOLTS (+) AS NEEDED
TO WIRE ON VEHICLE REQUIRING SAME AS PIN 87
POSITIVE (+) SIGNAL FEED
87
87A
85
30
86

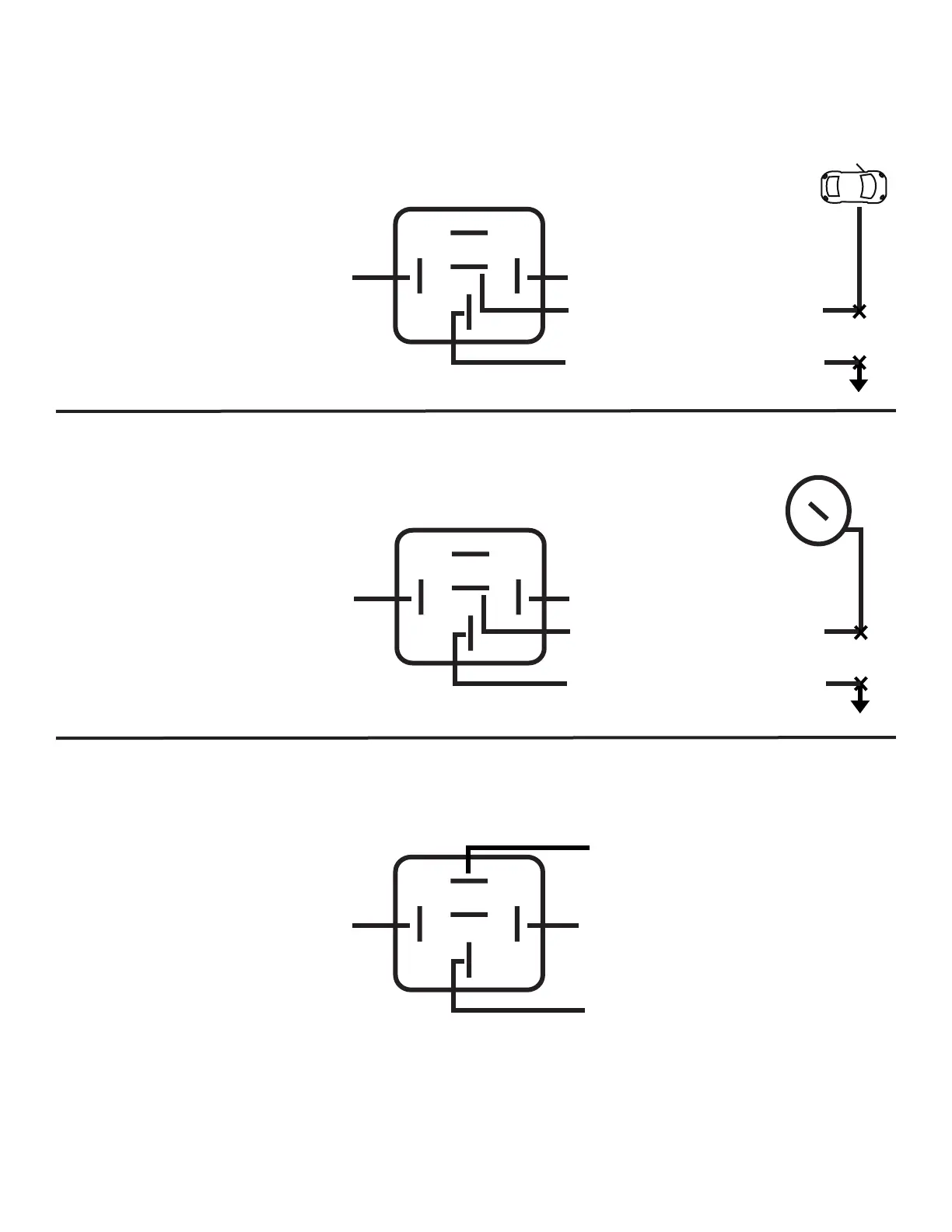

STARTER KILL/ANTI-GRIND
ORANGE/BLACK (-) ACCESSORY OUTPUT 12 VOLTS (+)
TO CAR SIDE OF CUT STARTER WIRE
TO SWITCH SIDE OF CUT STARTER WIRE
KEY SWITCH
START WIRE
87
87A
85
30
86
OPENING A WIRE (CUTTING) ALSO FORD OPEN DOOR R.A.P. (RADIO SHUTDOWN)
GREEN/WHITE (-) REARM OUTPUT
12 VOLTS (+)
TO CAR SIDE OF CUT DOOR PIN WIRE
TO SWITCH SIDE OF CUT DOOR PIN WIRE
DRIVERS DOOR PIN
FOR FORD R.A.P
SHUTDOWN
