solamagic DS 02007 - Safety Distances

02/2015

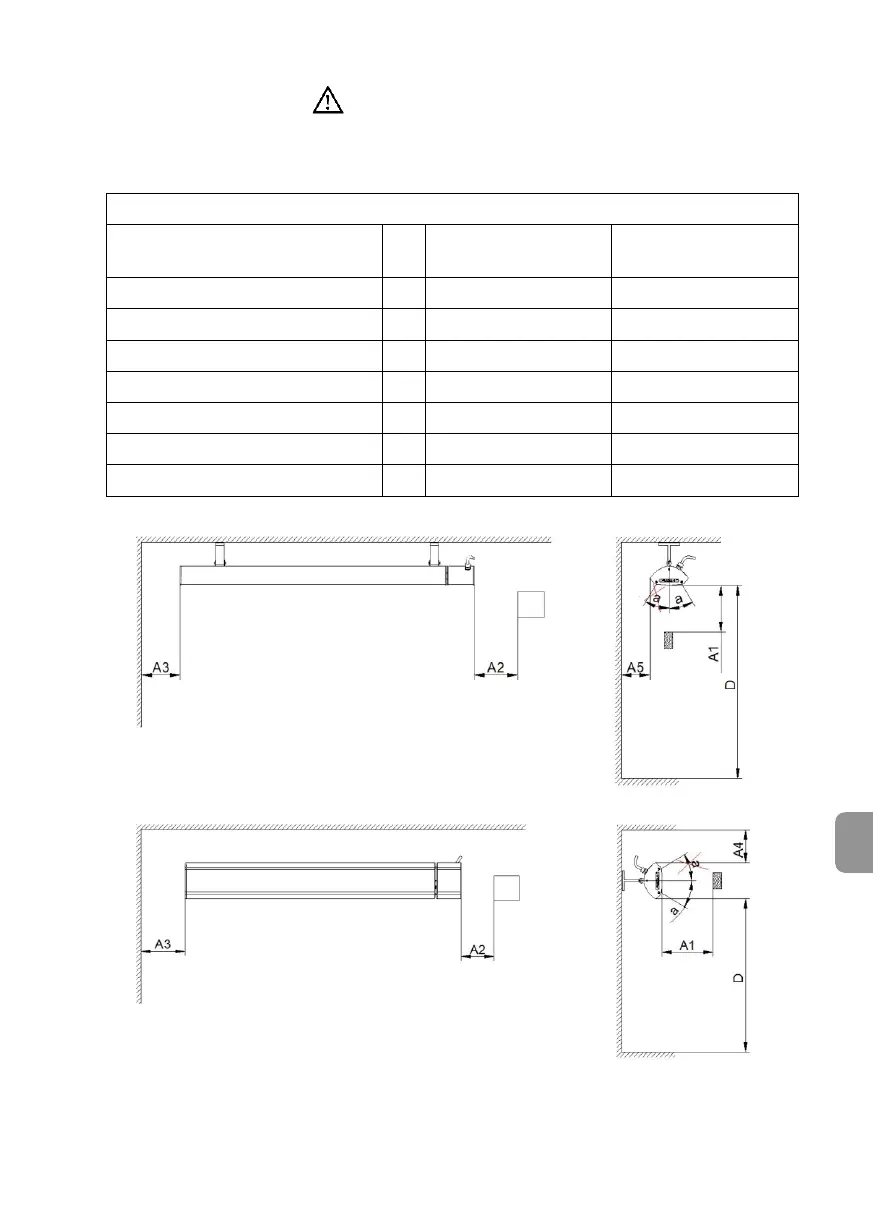

Appendix 2: Safety distances
Minimum distances in mm ①
Ceiling
installation②
Wall
installation③
Floor/heater distance
D
1800
1800
Distance to irradiated surface
A1
500
500
Distance to the socket
A2
100
100
Distance to the side wall
A3
90
90
Distance to overhead ceiling
A4
-
170
Distance to the rear wall
A5
90
-
Adjustment range
α
30°
30°
