Solamiser User Manual
CONNECTING SOLAMISER

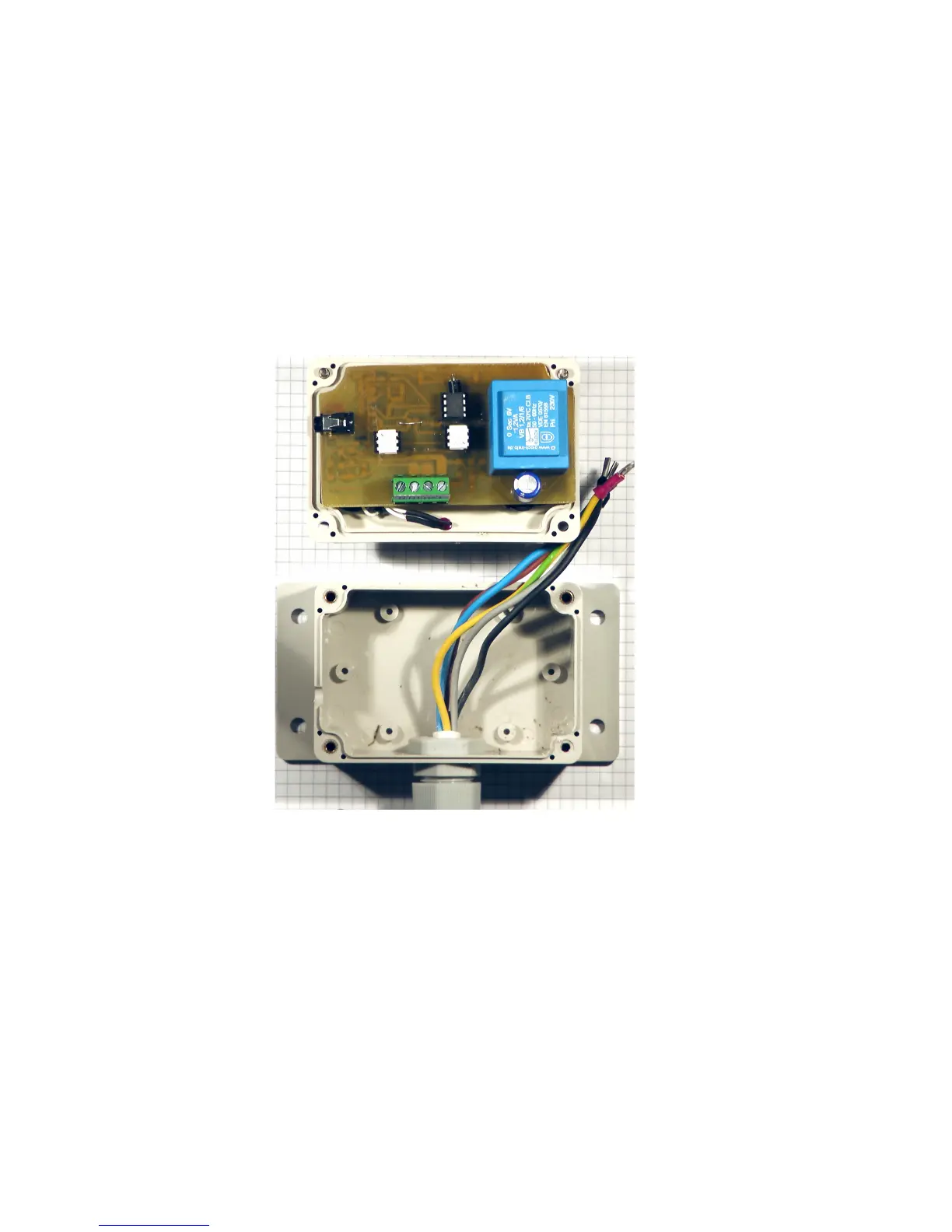

A single five core 1.5 mm² flexible cable should be
connected to the unit as shown.
Depending on the type of 5 core cable used it will either
be colour coded or have core numbers.
Core numbers and example colours are as follows:
Yellow and green = E (Earth);
Core 1 = Brown = L (Line);
Core 2 = Blue = N (Neutral);
Core 3 = Black = H1(Heater 1 Line);
Core 4 = Grey = H2 (Heater 2 Line).
5
