5. Equipment Installation

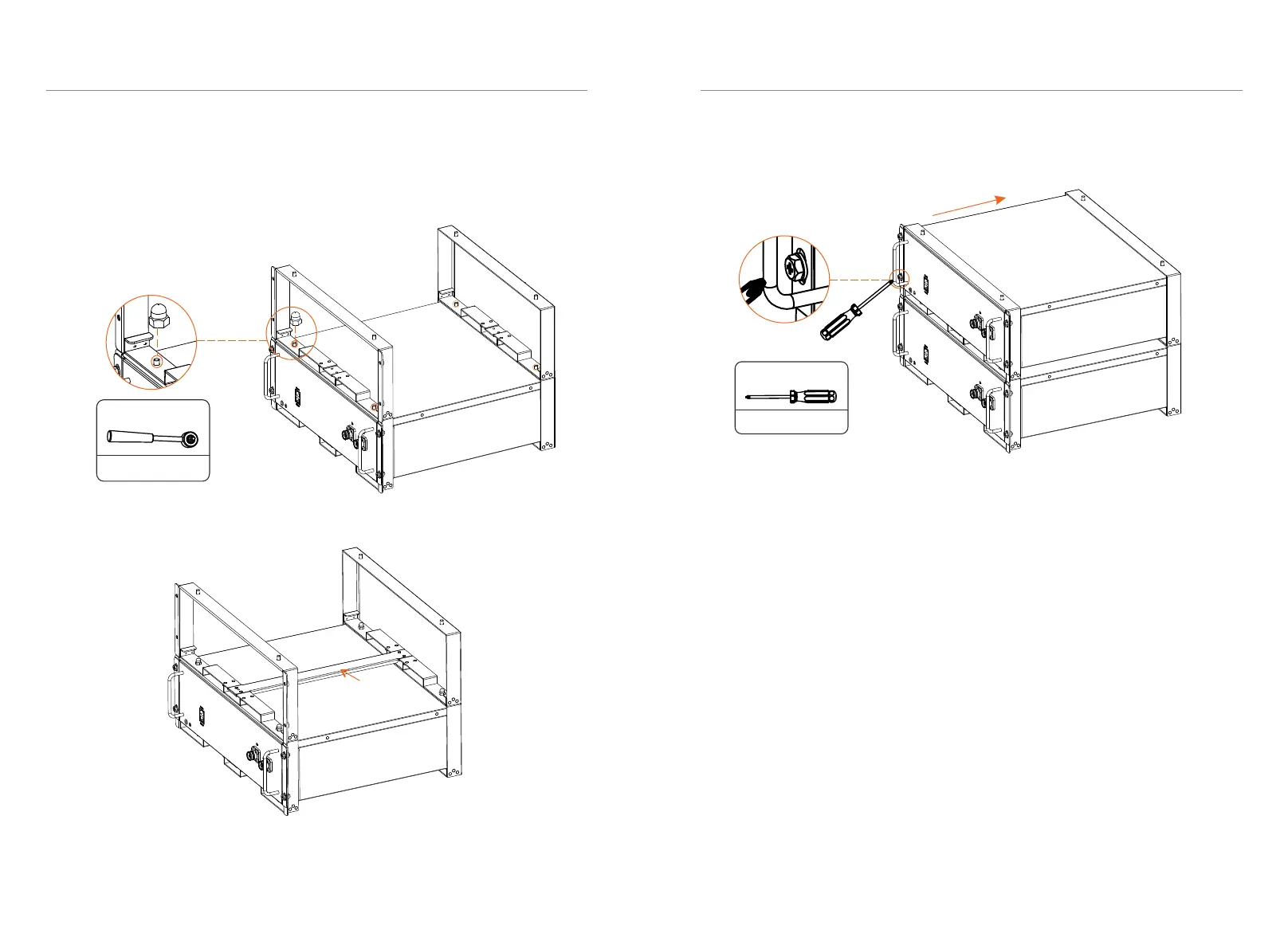

Step 3. Add the rack and battery module

① Put the Front and Rear Sides, to make sure that location pins are securely

inserted into the location holes

② Screw both front and rear sides with Cap Nuts (4 pcs) (Torque: 4-6 N·m)

① Place the metal plate connecting both front and rear sides

Metal plate

① Put the battery module into the rack

② Screw M6×L16 into the front side of the second rack (Torque: 4-5 N·m)

M6 X L16 * 4

Torque: 4-5 N·m

Torque: 4-6 N·m

Cap Nut * 4
