BMS (TBMS-MCR0800)
3. Product Introduction
3. Product Introduction
8
3.1.2
Installation Space
Note!
1) Currently, a Rack may withstand up to a BMS and 6 battery modules.
2) The above Cabinet is a standard cabinet, with both height and depth of 23.62
inches/600 mm. Users can purchase it based on their demands.

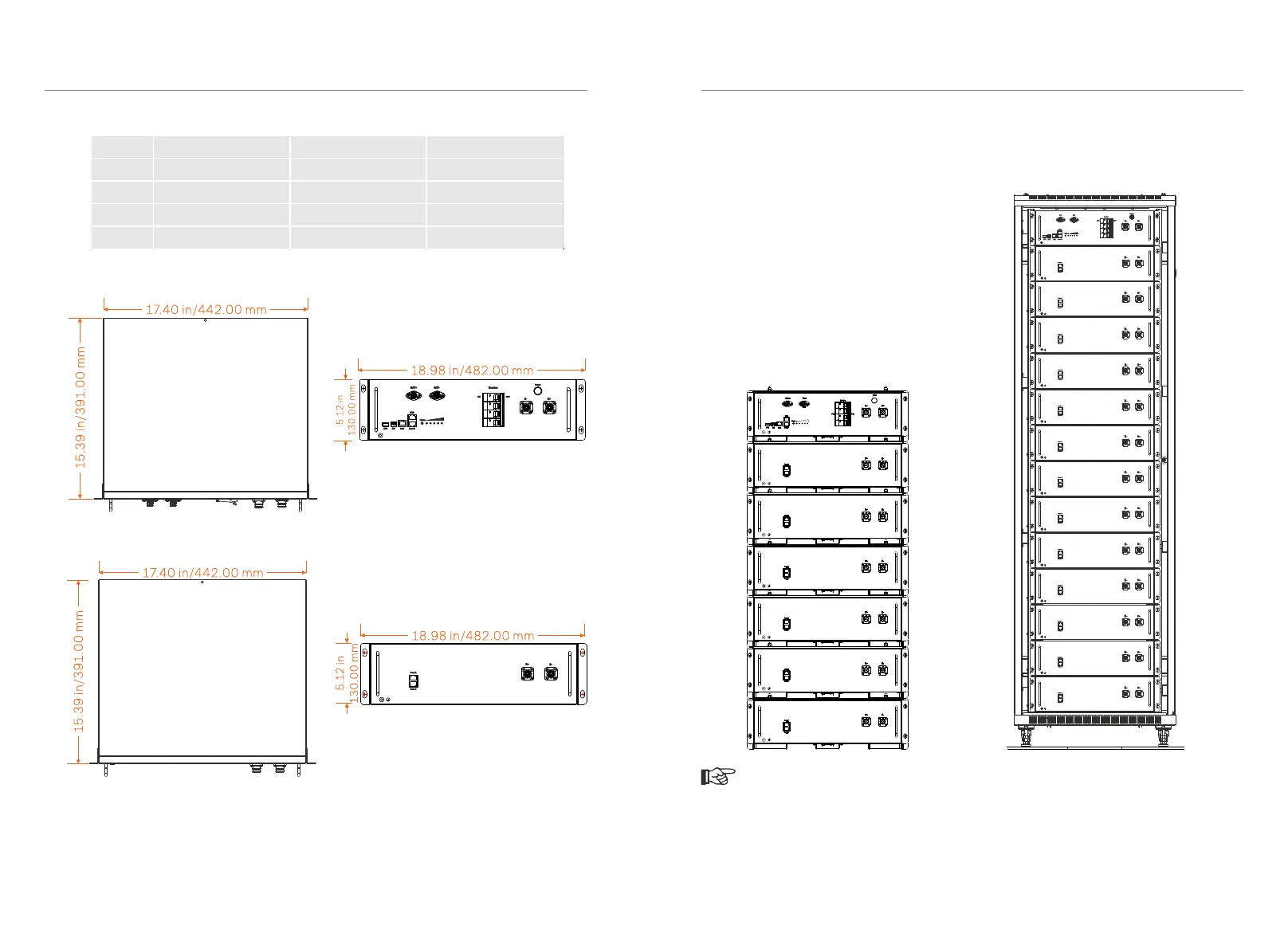

■ Rack Installation ■ Cabinet Installation
Battery Module (TP-HR25/TP-HR36)
TBMS-MCR0800 TP-HR25 TP-HR36
Length 17.40 in./442.00 mm 17.40 in./442.00 mm 17.40 in./442.00 mm
Width 15.39 in./391.00 mm 15.39 in./391.00 mm 15.39 in./391.00 mm
Height 5.12 in./130.00 mm 5.12 in./130.00 mm 5.12 in./130.00 mm
Weigth 17.64 lbs/8.00 kg 61.73 lbs/28.00 kg 68.34 lbs/31.00 kg
