E20 / E25 ELLIPTICAL7
#153. M8 L Allen Wrench
(E20 Only)

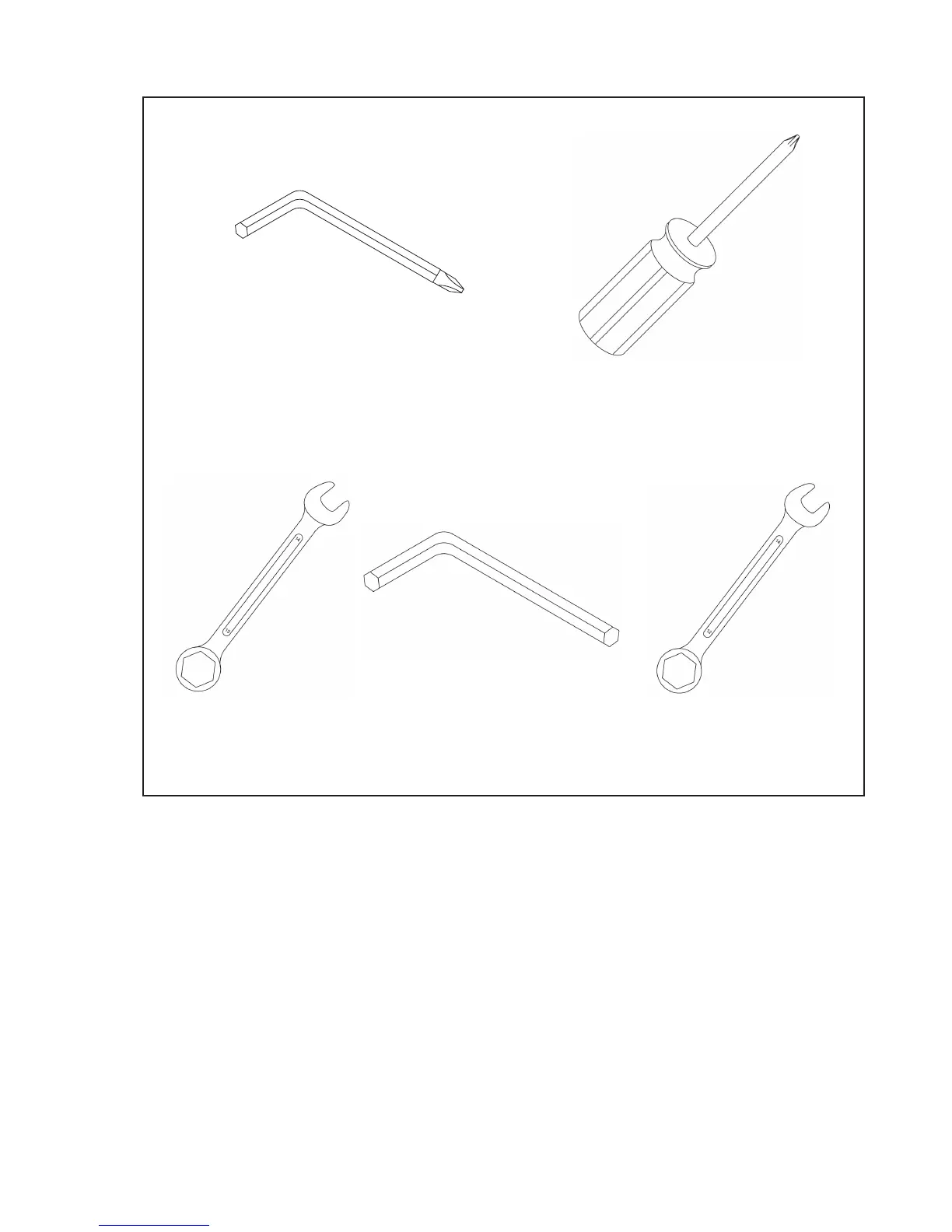

ASSEMBLY TOOLS
#150. Phillips Head Screwdriver
#151. 13/14mm
Wrench (160mm)
#149. M5 Allen Wrench
& Phillips Head Screw Driver
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the hardware
for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing
for reference.
PRE-ASSEMBLY
E20 / 25 ASSEMBLY INSTRUCTIONS
#152. 12/14mm
Wrench (160mm)
To Next Page
