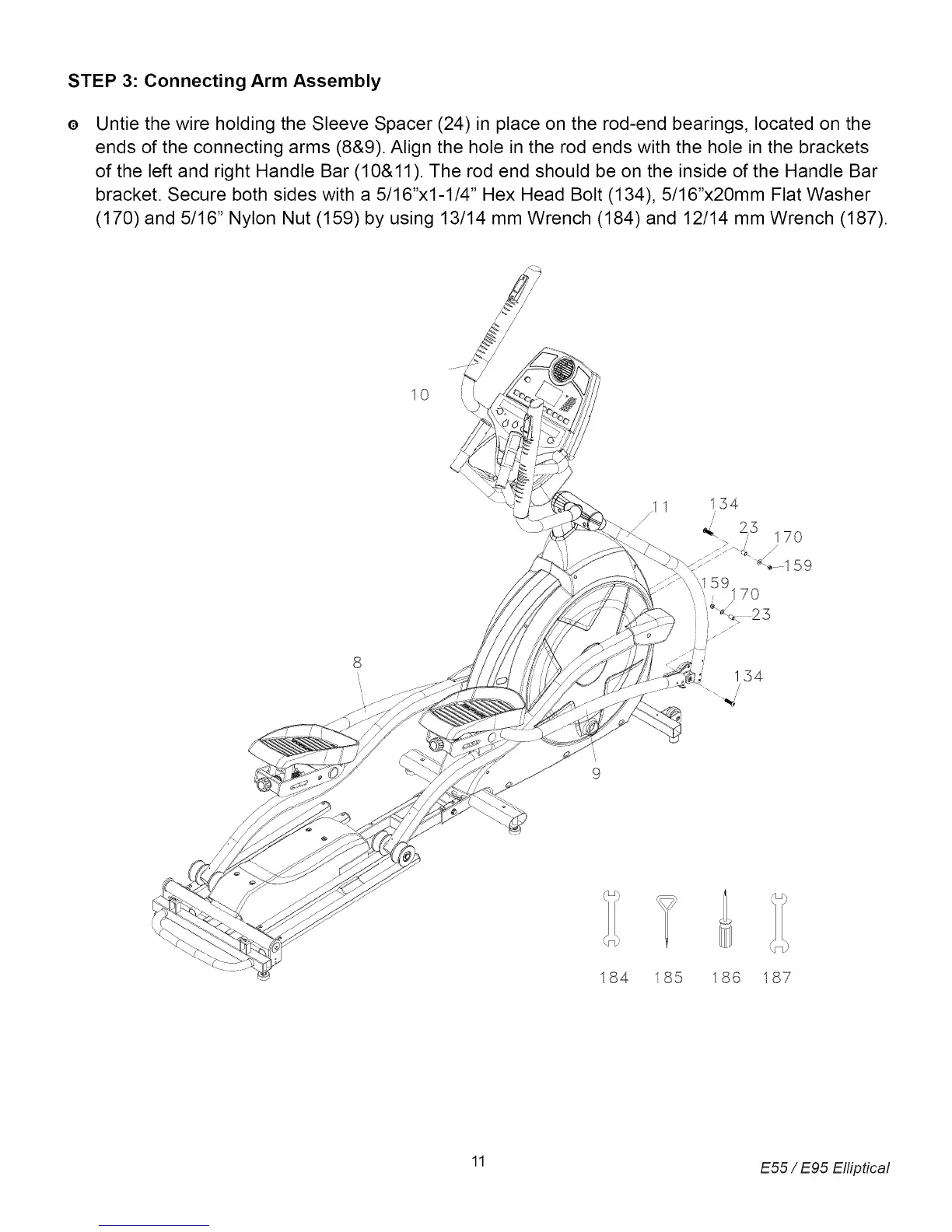

STEP 3: Connecting Arm Assembly
O
Untie the wire holding the Sleeve Spacer (24) in place on the rod-end bearings, located on the
ends of the connecting arms (8&9). Align the hole in the rod ends with the hole in the brackets
of the left and right Handle Bar (10&11). The rod end should be on the inside of the Handle Bar
bracket. Secure both sides with a 5/16"x1-1/4" Hex Head Bolt (134), 5/16"x20mm Flat Washer
(170) and 5/16" Nylon Nut (159) by using 13/14 mm Wrench (184) and 12/14 mm Wrench (187).
/
