Solera

Power Awning 18V

Installation and Owner’s Manual

(For Aftermarket Applications)

CCD-0001260

Awning Rail Installation

If installation of an awning rail is required, complete the

following steps.

1. Position the awning rail along the line where roof and

wall meet OR:

A. For pitched awnings: A minimum of 6" above doors or

windows.

B. For at awnings: A minimum of 2 ½" above doors or

windows.

NOTE: The awning rail must be level and parallel with the

oor line of the unit (Fig.1).

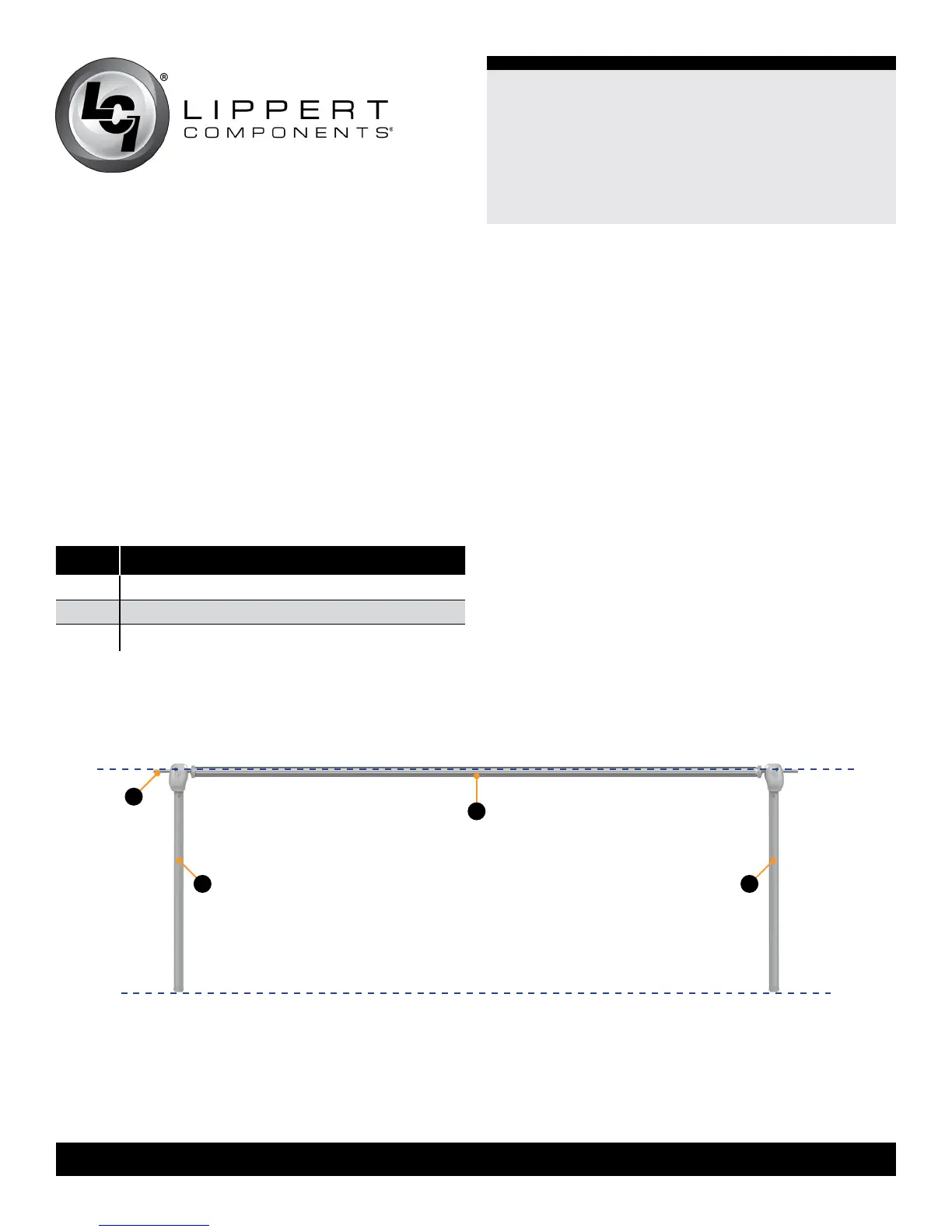

Letter Description

A Awning Rail

B Support Arm Assembly

C Roll Tube Assembly

Fig.1

front facing view

floor line

B B

2. After determining the awning rail’s proper location, mark

its position with a non-permanent method of marking.

3. Seal the back of the awning rail.

4. Align the awning rail on the wall and secure with #10 x

¾" screws, using all fastener holes.
