Power Awning 18V
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001260
10. Cut the cable ties, locate the switch on the side of the
arm and open the awning halfway out.
11. Remove the wire cover to expose the fastening points.
12. Install the remaining two #14 x 1
¼” screws at any of
the three locations shown in the center of the support arm
(Fig.7).
13. Repeat this process for the other side of the awning
assembly.

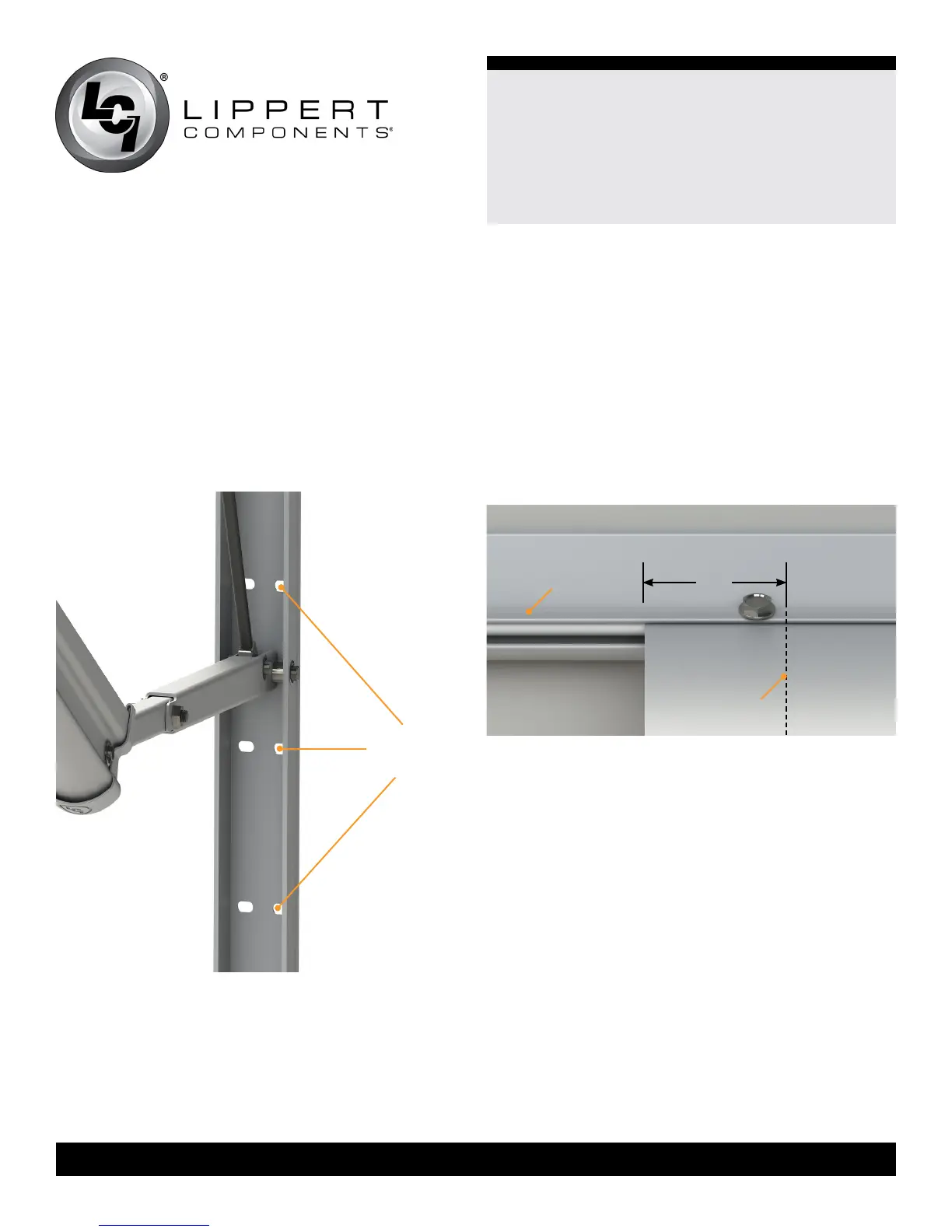

Fig.7
possible
fastener
locations
Securing The Fabric
1. Extend and retract the awning several times to make
sure the fabric is square on the roll tube.
2. On both ends, secure the fabric in the awning rail no
more than 1” inside the edge of the fabric using a #6 x ½”
hex head screw (Fig.8).
3. Install the screw down through the awning rail into the
fabric and the polycord.
Fig.8
awning rail
fabric stitching
1”
