Solera

Power Awning 18V

Installation and Owner’s Manual

(For Aftermarket Applications)

CCD-0001260

Operation

Extending the Awning

1. Locate the locking latch on the side of the support arm, if

equipped, and unlock the latch.

NOTE: This latch is optional and may or may not be

installed on one or both support arms.

2. Lift up and hold the switch (Fig.11A) until the awning is

extended completely.

to battery

pack

to drive head

to charger

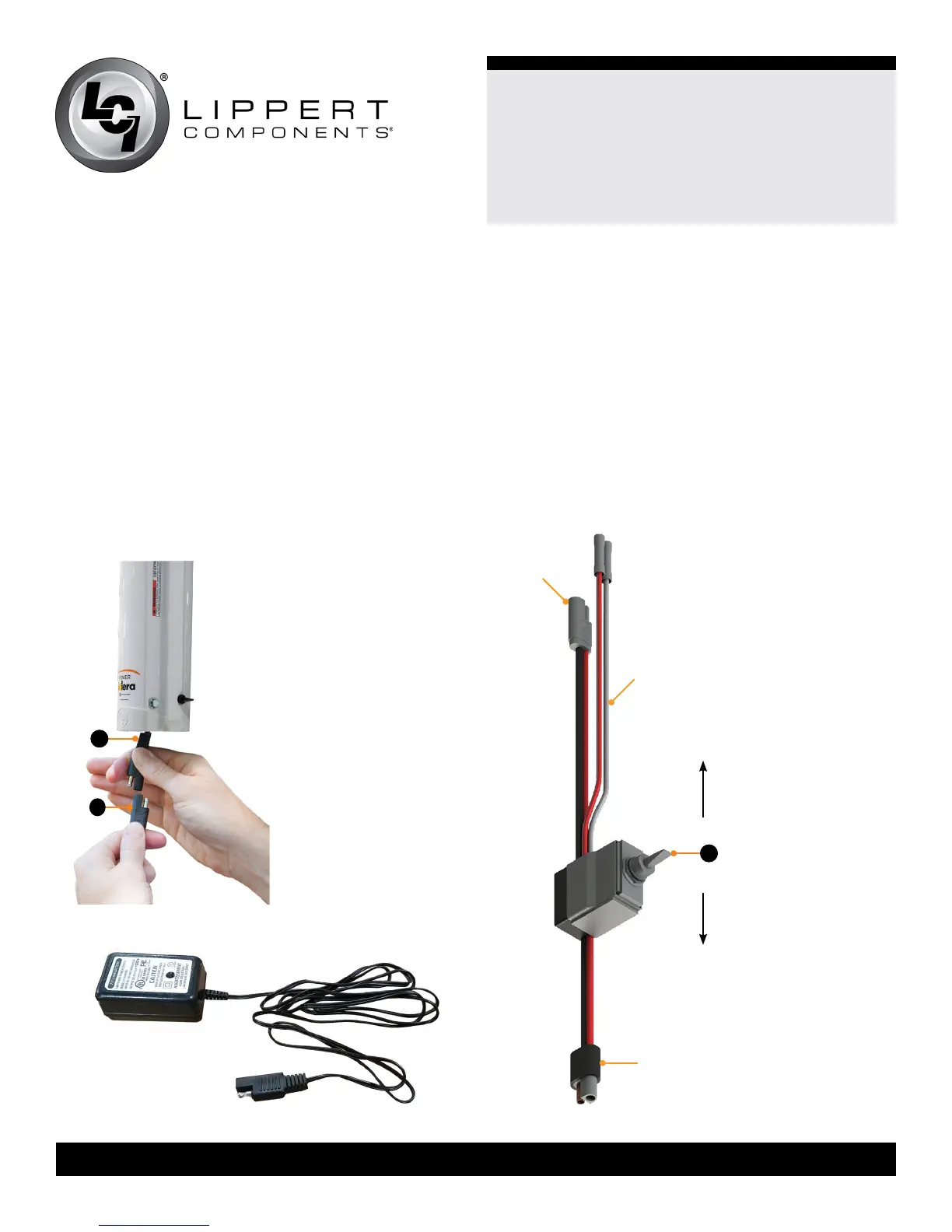

Charging the Battery

The battery for the Solera 18V Power Pack is located

inside the drive arm. The awning will operate 22-25 times

before needing to be recharged.

1. Locate the battery wires (Fig.9A) stored inside the

bottom of the drive arm. The wires will be afxed with a

hook-and-loop fastener.

2. Attach the battery wires to the included battery charger

cord (Fig.9B).

3. Plug the charger (Fig.10) into a 110V outlet.

4. When the battery is fully charged, a green light will

illuminate on the charger. A red light indicates the battery is

still charging.

extend

retract

Fig.9

Fig.10 Fig.11
