Installation instructions
–
Wooden frame collectors
In-roof installation
(1
5
)

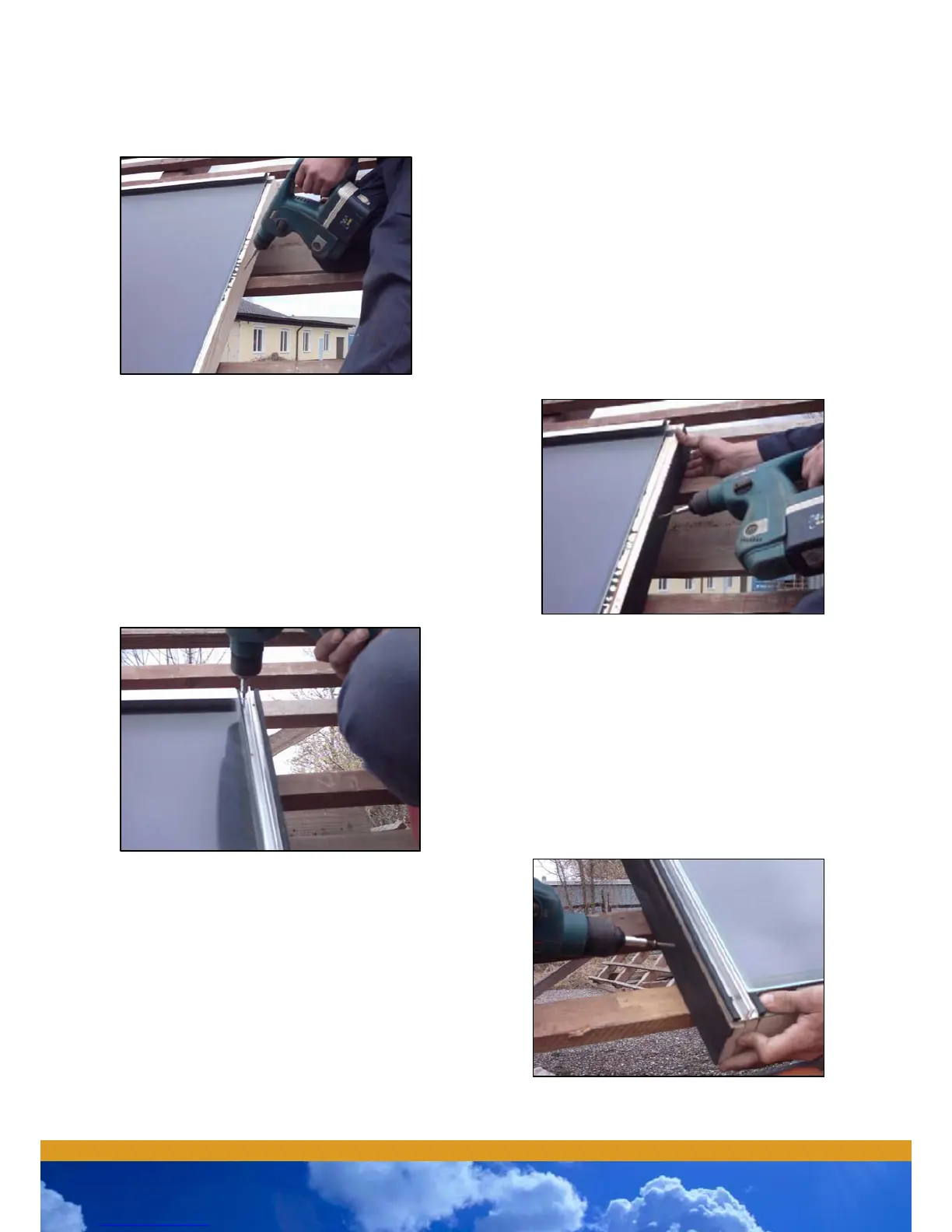

On the right hand side of the collector field:
As for the left hand side, fasten the collector to the
slats. To do so, use Torx 4x80mm screws and screw
sideways through the frame all the way through to the
slat.
(16)
On the right hand side, mount the finishing slat:
Position the slat correctly and fasten it to collector
using 3 Torx
4x30
mm screws. These screws should be
spread regularly all along the frame.
(17)
Mount the right hand side collector’s aluminium profile
on its frame.
use 4×25mm head screws (3 units)
(18)
As described in step (17):
Mount the finishing slat but this time on the right hand
side:
Place this slat into the correct position and fasten it
using 3 Torx 4x30mm screw. These screws should be
spread regularly all along the frame.
page 10 - Installing the collectors
