Wooden frame co
l
lectors
In
-
roof installati
o
n
(37
)

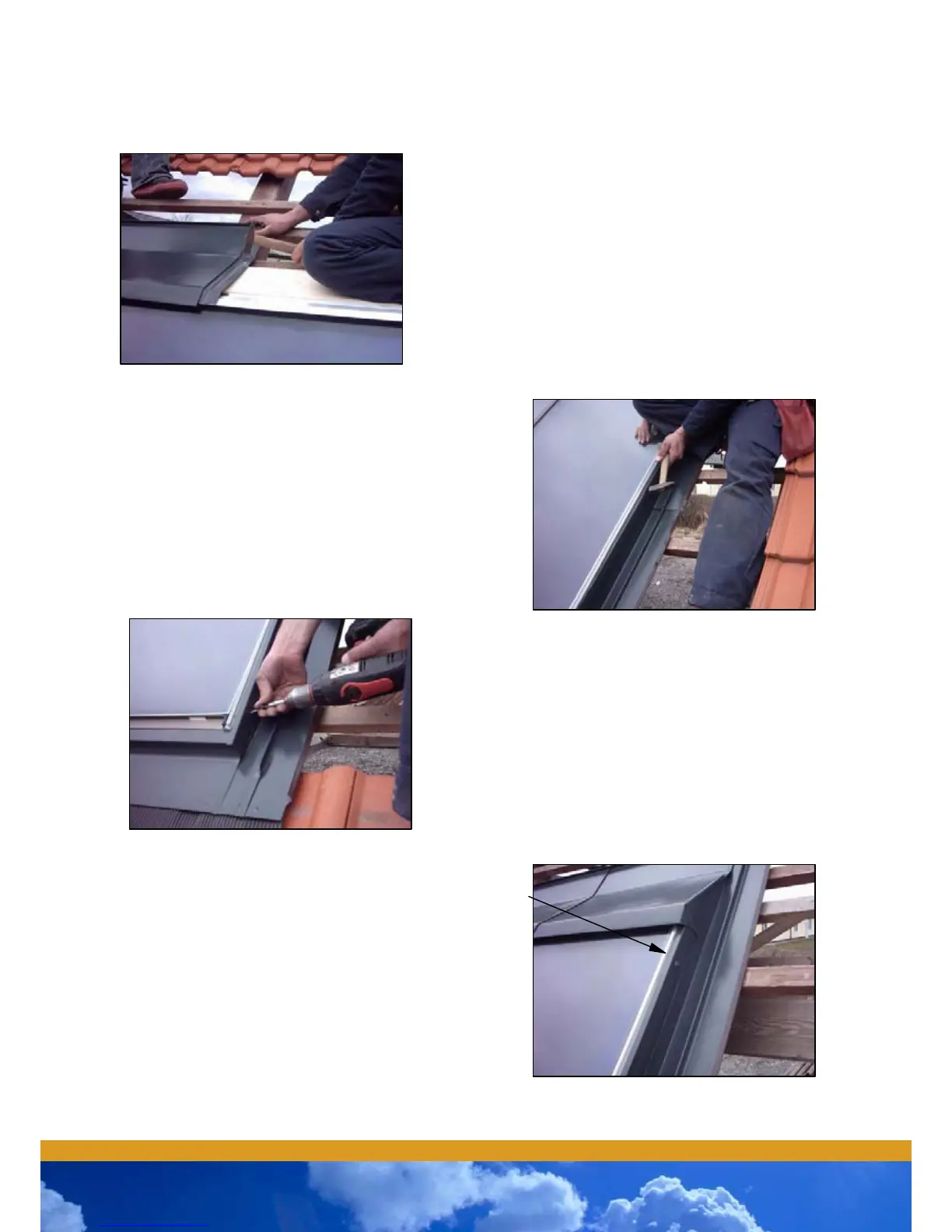

As for the corner part, nail these elements to the
wedge using sealed plumbing nails, at the juncture.
(38)
Firmly fix the side left and right side pieces.
(39)
Place the right hand side cover sheet on top of the side
gasket.
Fasten with sealed plumbing screws: 1× at the top, 1×
at mid-length and 1x at the bottom.
(40)
Sealed plumbing screw, top right.
