Installation instructions
-
Wooden frame collectors
In
-
roof installation
(4
1
)

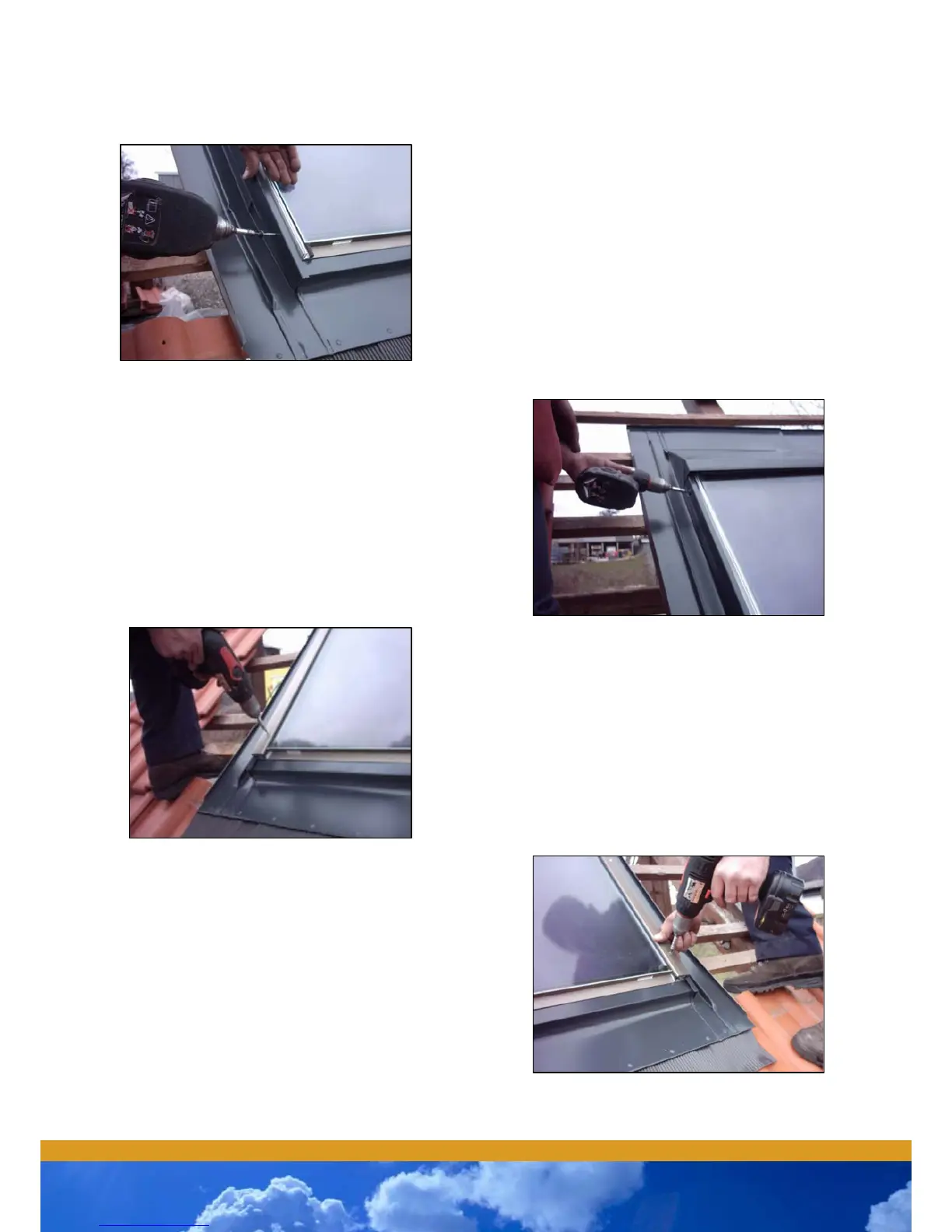

Place the left hand side cover sheet on top of the side
gasket.
Fasten with sealed plumbing screws: 1× at the top, 1×
at mid-length and 1× at the bottom.
(42)
Sealed plumbing screw, top left.
(43)
On the left hand side, mount the exterior cover profile
and fasten it with a, 2x19mm screws.
These cover profiles must be perfectly aligned with the
glass cover.
Each profile must by fixed with a 4,2x19mm screws.
(44)
In the same wax, mount the right hand side exterior
p
rofile.
Installing the collectors - page 17
