Installation instructions

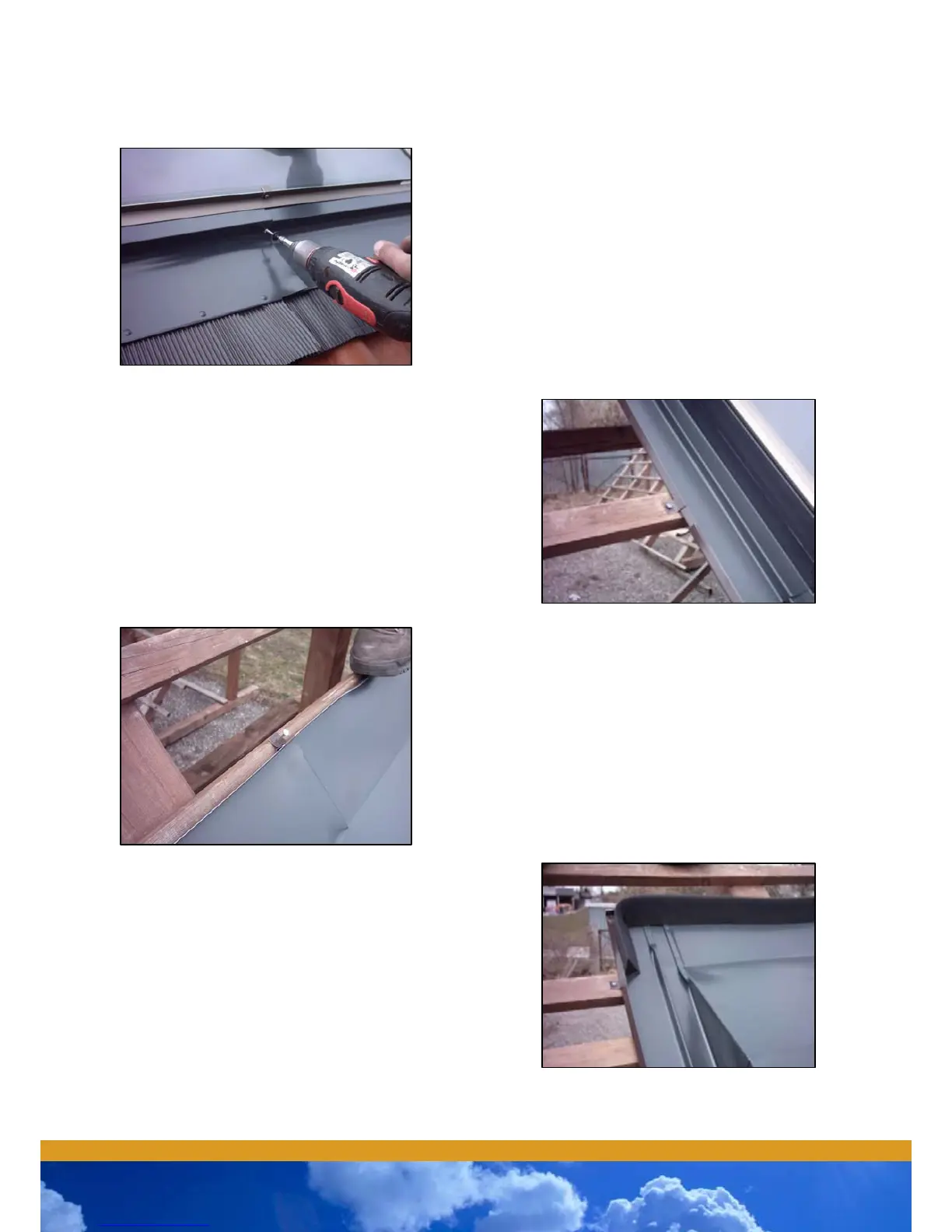

At the bottom sheets and by the mix-collector,
underneath the glass cover, add a sealed plumbing
screw (into the wooden slat installed in (29)).
(46)
Fasten the side parts to the roof slats thanks to metal
retainer and roofing nails. (minimum 3x per side).
(47)
In the same way, place similar retainers every meter
along the upper cover sheet.
Indication:
If there is no roof slat at this exact place, it is
necessary to install one before the installation of the
covering fame.
(48)
Stick a rubber wedge all along the upper edge of the
cover sheet.
page 18 - Installing the collectors
