(8
)

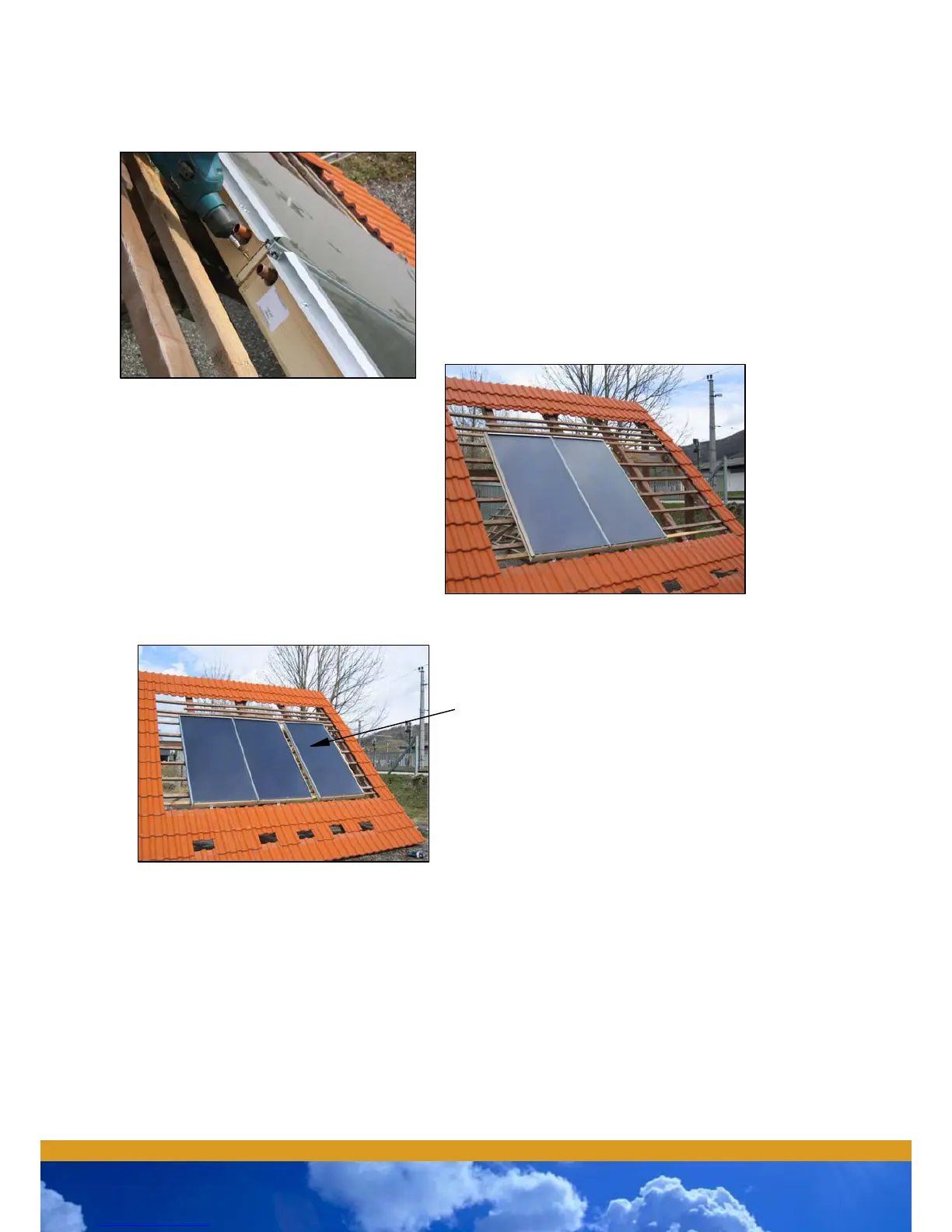

Firmly screw the two collectors with a Torx 4x80mm
screw that you will screw sideways through the frames
of both collectors.
(9)
Collector’s 1 and 2 are now installed.
Installation instructions
–
Wooden frame collectors
In-roof installation
(
10)
The following collectors will be installed following
the exact same procedure as the one described
in stages
(5) to (10).
page 8 - Installing the collectors
