Installation instructions

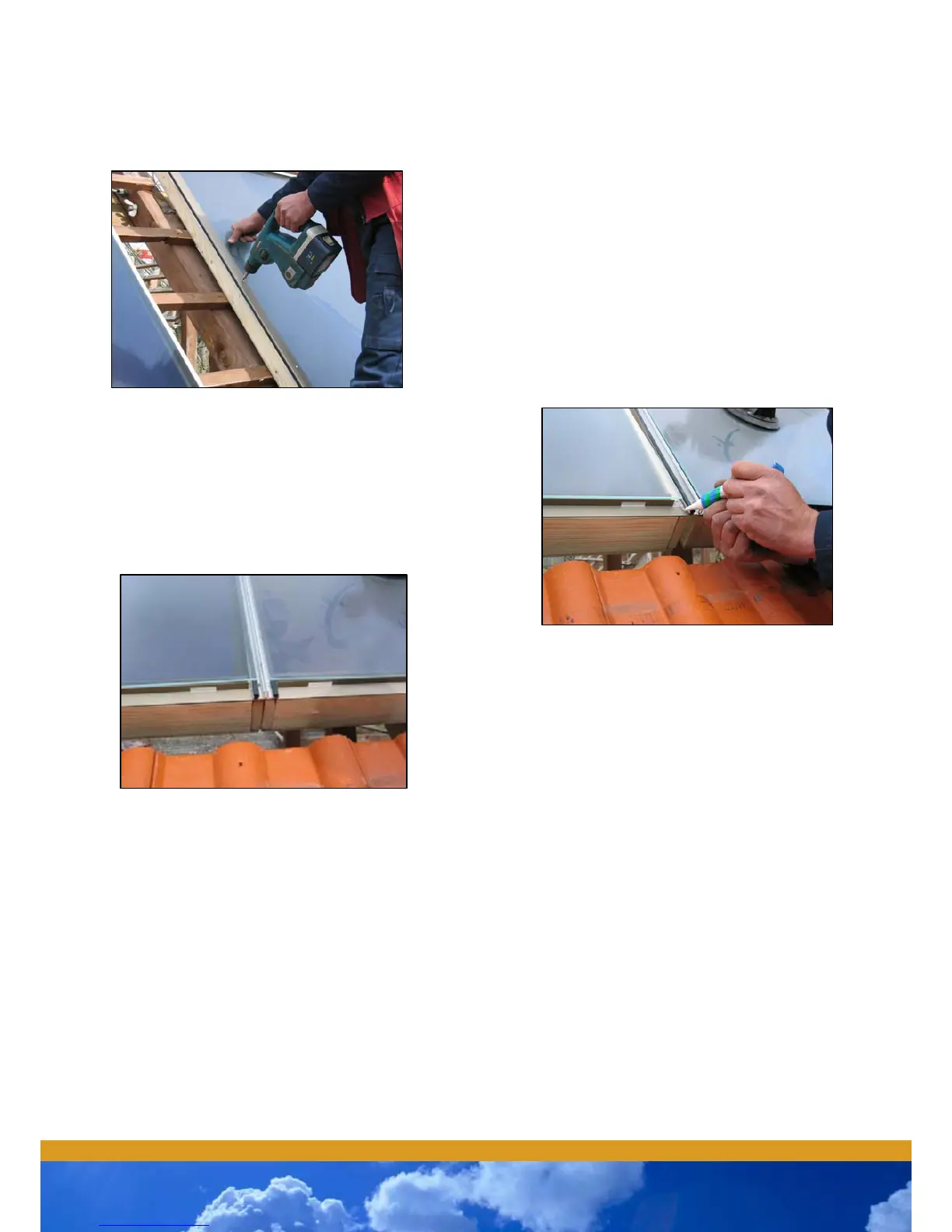

Haul up the second collector on the roof.
Unscrew the covering aluminium profile.
To do so, you have to unscrew 6 4, 2 x 19 mm screws.
Caution: keep those screws. They will be used later.
(6)
Lay down a layer of silicon on the left collector’s part,
which will be fixed to the right’s collector aluminium
profile. (about 2cm).
(7)
Then,
make this second collector
slide sideways up till
its complete contact with the first installed collector.
The first collector’s
glass cover must rest
on the
tightness gasket and be in complete contact with it.
Installing the collectors - page 7
