Solid State Logic L200

SSL Live Installation Information
www.solidstatelogic.com Page 20 of 45

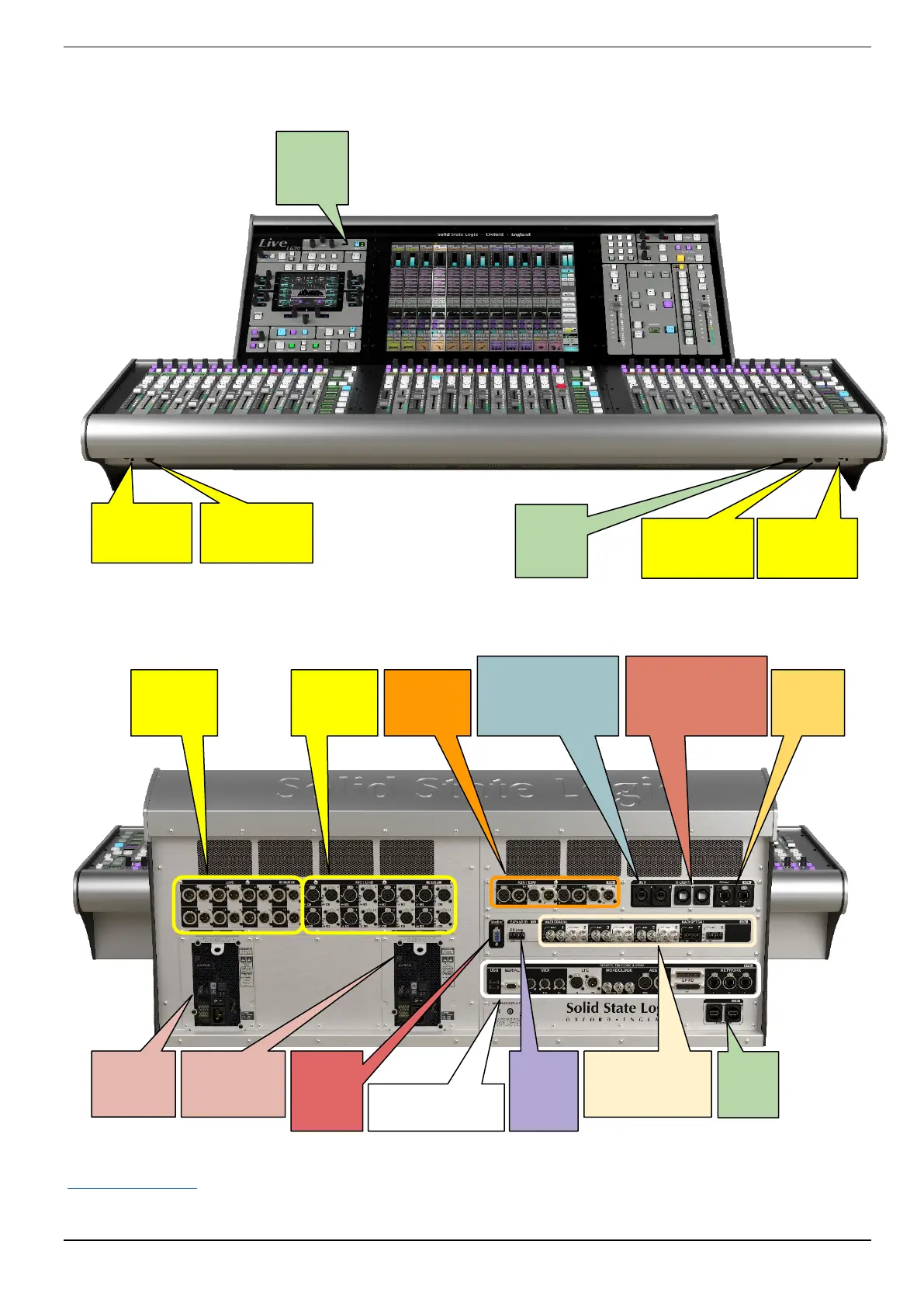

L650 Console
L650 Connections - Front
L650 Console Connections - Rear
Connections Key
USB
*8a
Female XLR
T/B Mic A
*4
USB
*8a
¼” Jack
Headphone A
*10
Female XLR
T/B Mic B
*4
¼” Jack
Headphone B
*10
Mains Power
Inlet &
Switch
*1
Second Mains
Power Inlet &
Switch
*1
Local MADI
6 Ports Coaxial
2 Ports Fibre SC
*2
Local SC
Fibre
MADI FX
Loop
*6
Optional Blacklight II
Neutrik opticalCON
DUO Connectors
0 or 2 connectors
*3a
VGA
Monitor for
Ext
Overview
*7
USB
*8a
Sync - Panel details
on page 22
Analogue
Mic/Line IP
1-12
*4
Analogue
Line OP
1-12
*4
AES 1-8
4pr In
4pr Out
*5
Dante
Interface
*9
Optional X-Light
Neutrik opticalCON
QUAD Connectors
0 or 2 connectors
*22
