Solid State Logic L200 User Manual

SSL Live Installation Information
www.solidstatelogic.com Page 38 of 45
Environmental (Applicable to all console models)
Temperature
Operating: +1 to 40 °C *
Storage: -20 to 50 °C
Vibration
Random vibration test as per BS EN 60068-2-64:2008, Test Fh and in
accordance with ETSI E300-019-2-2 V2.3.1 (2013-04), Table 6. Specification of
environmental tests; Transportation
* Note that the addition of dust guards will increase the internal temperature of the console by
several degrees. SSL recommends that if dust guards are fitted the console should not be operated in
an external ambient temperature in excess of 30 °C.

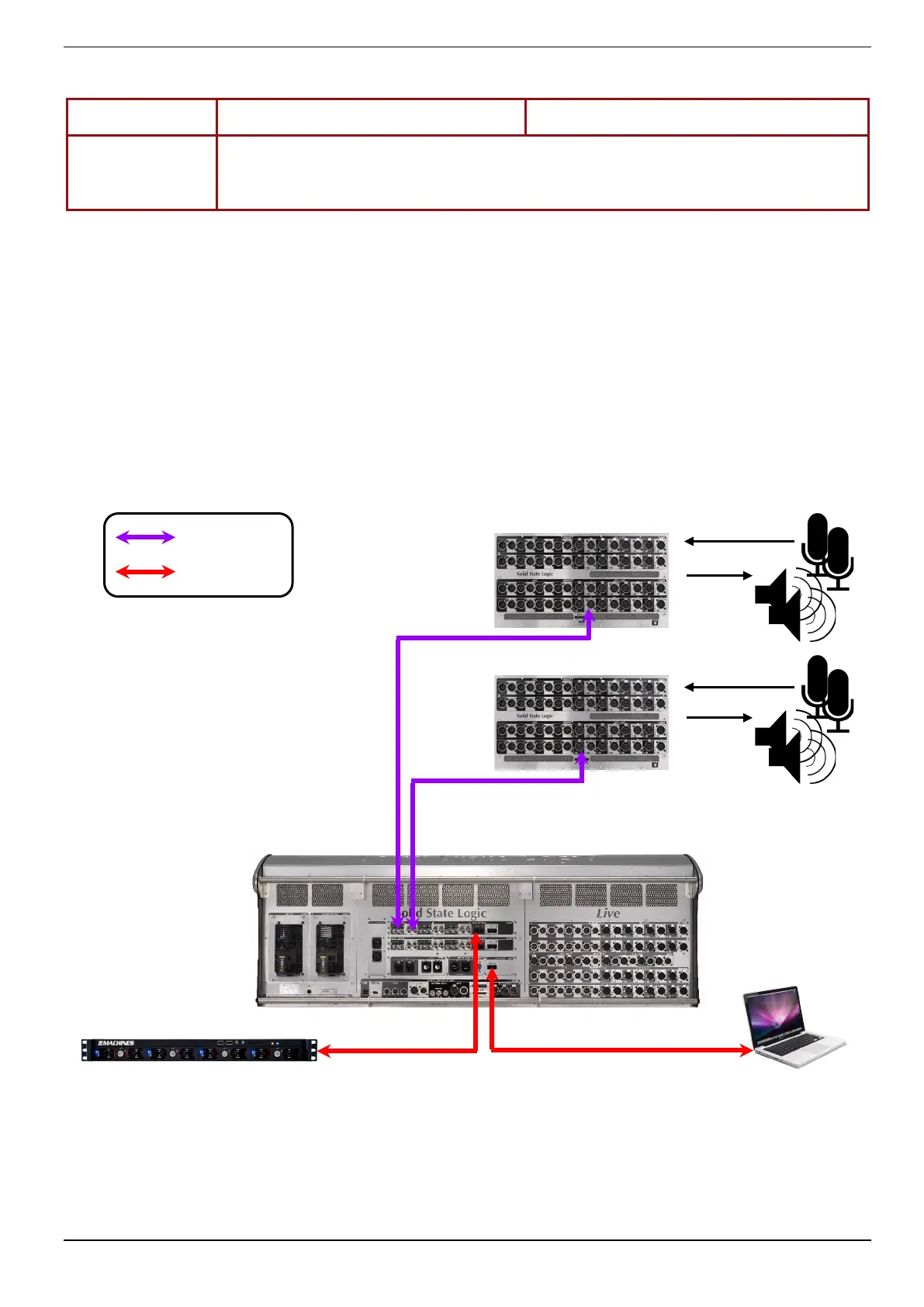

Typical Installation Diagrams
Simple Single System
L550 Control Surface shown provides 32 analogue IO, 16 AES IO, 16 MADI ports plus MADI FX Loop
at FOH position.
2 off ML 32.32 stageboxes provide 64 Mic/Line inputs and 64 line outputs on stage.
Additional/different MADI stageboxes can be connected as required.
Console
ML 32.32 Stagebox 2
32 Mic/Line
32 Line
Out
32 Mic/Line
32 Line
Out
Recorder
FX Loop
Coaxial
Fibre MADI
ML 32.32 Stagebox 1
