Console Remote, Timecode & Sync Panel
(L200, L350, L450, L550, L650)

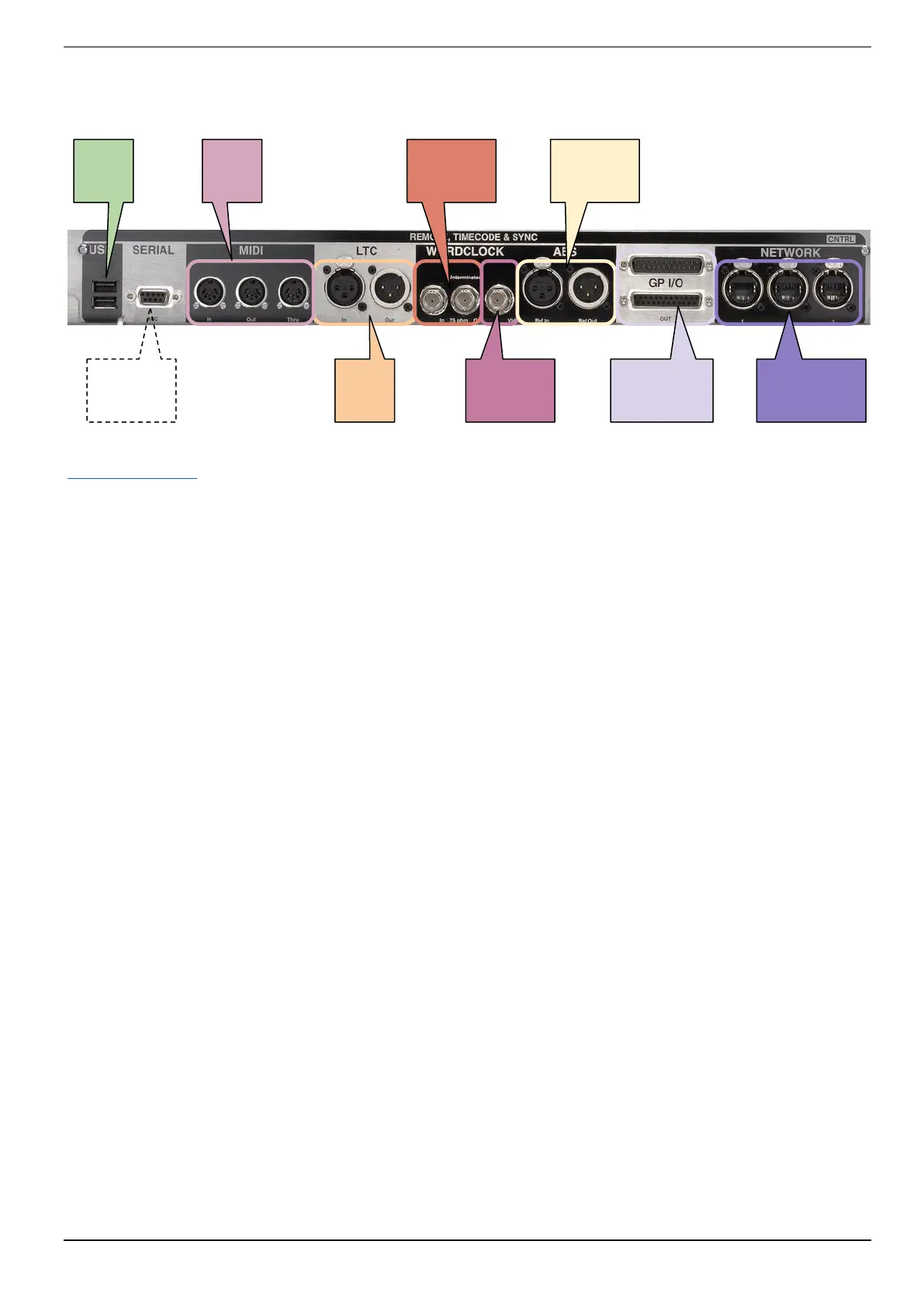

Connections Key
The LTC output is a reshaped timecode feed derived from the LTC input and the MIDI output a
reclocked duplicate of incoming MTC. The console does not offer LTC to MTC or MTC to LTC
conversion.
USB
*8a
N/C Future
Expansion
MIDI
*15a
LTC
*17
Wordclock
*13
AES
Reference
*16
GPIO
In & Out
*19b
Connectivity
Network
*14
Video
Reference
*18
