Solid State Logic L200

SSL Live Installation Information
www.solidstatelogic.com Page 25 of 45

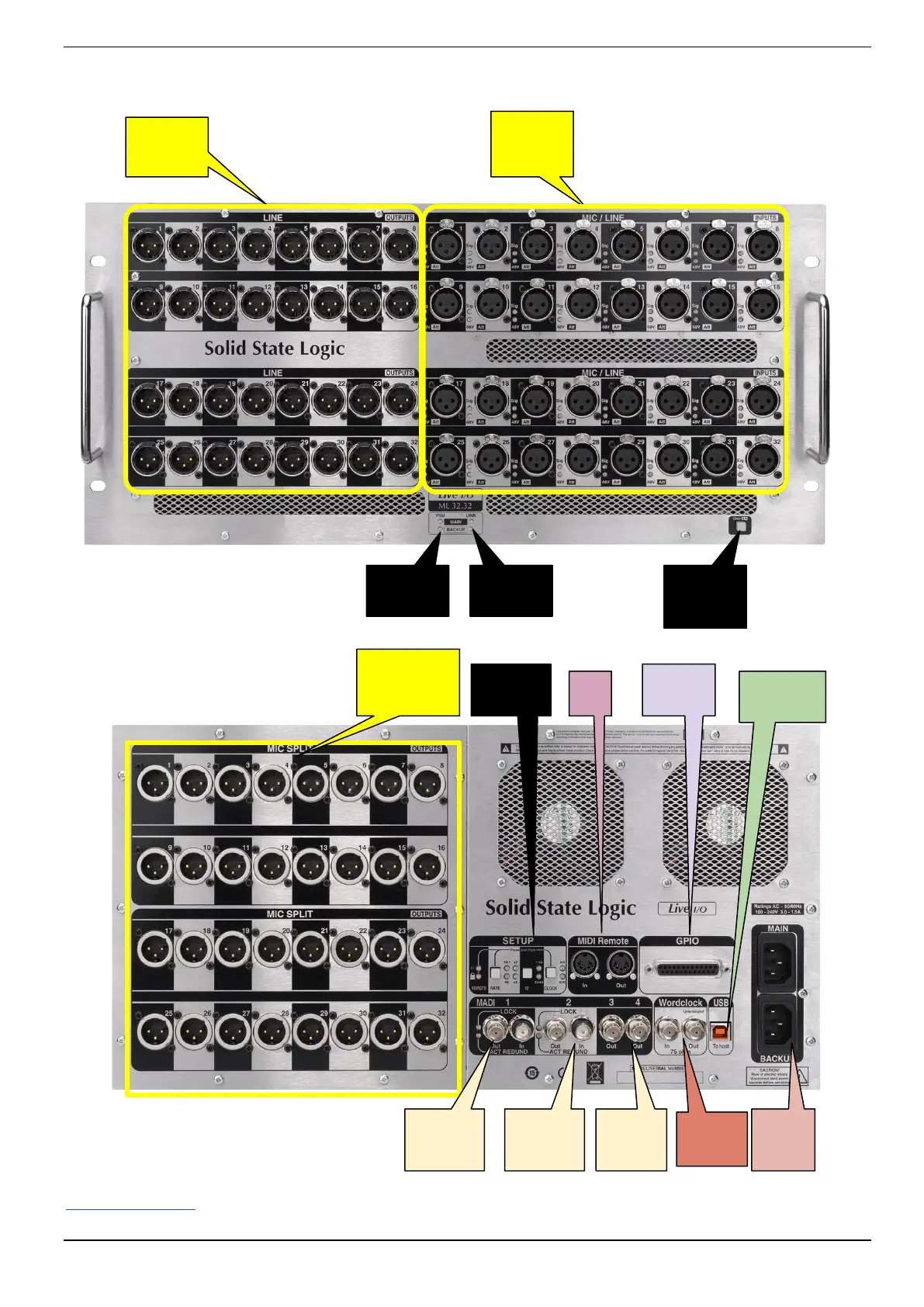

ML 32.32 5U Mic/Line Stagebox
Front
Rear
Connections Key
Analogue
Mic/Line IP
1-32
*4
Analogue
Line OP 1
-
32
*4
PSU Status
MADI Link
Status
Clear
Attention
LEDs
Mains
Power
Inlet
*1
Primary
MADI
Coaxial
*2
Maintenance
USB Port
*24
MIDI
*15b
Local
Wordclock
*13
GPIO
In & Out
*19a
Redundant
MADI
Coaxial
*2
Additional
MADI
outputs
*2
Optional
Analogue Mic
Split Outputs
*4
Local Setup
Controls
*20
All MADI Outputs carry common data.
MADI outputs 3 & 4 can be used as MADI
output only streams for other devices
