SSL Live Installation Information
www.solidstatelogic.com Page 34 of 45
*15b - Stagebox MIDI Connections
5-pin DIN standard MIDI connections for In & Out connections.
*16 - AES Reference
AES Sync Input and Output on 3 pin XLR connections.
(IEC 60958 Type I)
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12
mm (typical)

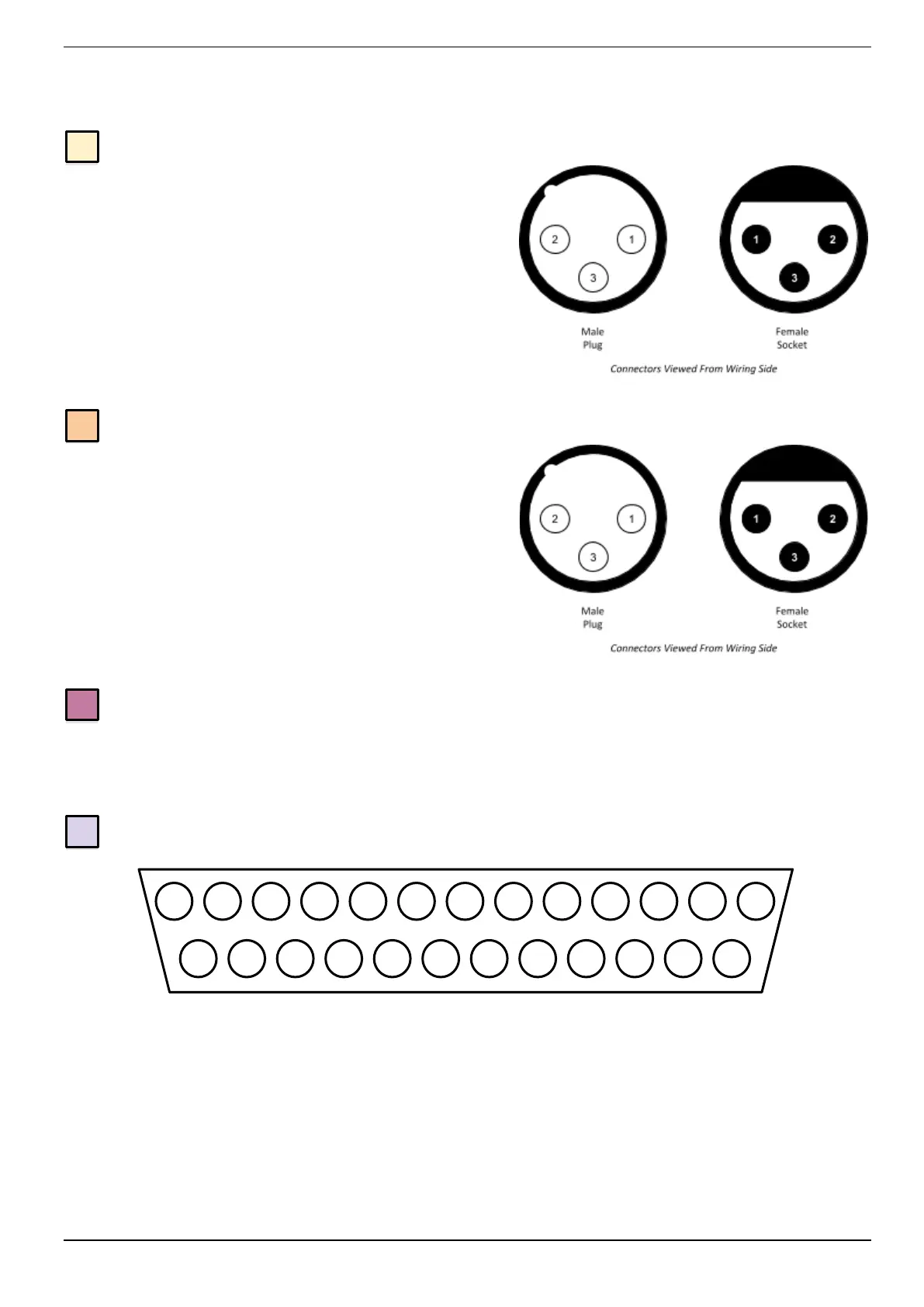

Pinout for AES3 XLR:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*17 - LTC Connectors
Linear Time Code (LTC) in and out using Balanced XLR
connections.
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12
mm (typical)
Pinout for LTC In and Out
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*18 - Video Reference
BNC connectors to IEC 60169-8
75 Ω Characteristic Impedance, Analogue video (1 Vp-p, PAL, NTSC, Composite, B&B)
*19a - Stagebox GPIO Connections
Connector Type: 25-Way D-Type Female (Combined Inputs & Outputs)
Dimensions: Cable Dia: 55 x 15 mm (approx.) 8 mm (typical)
Screwlock thread: 440-UNC
6 opto-isolated GP input and 5 relay-closure outputs
1 2 3 4 5 6 7 8 9 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Socket (Female)
