SSL Live Installation Information
Typical Installation Diagrams

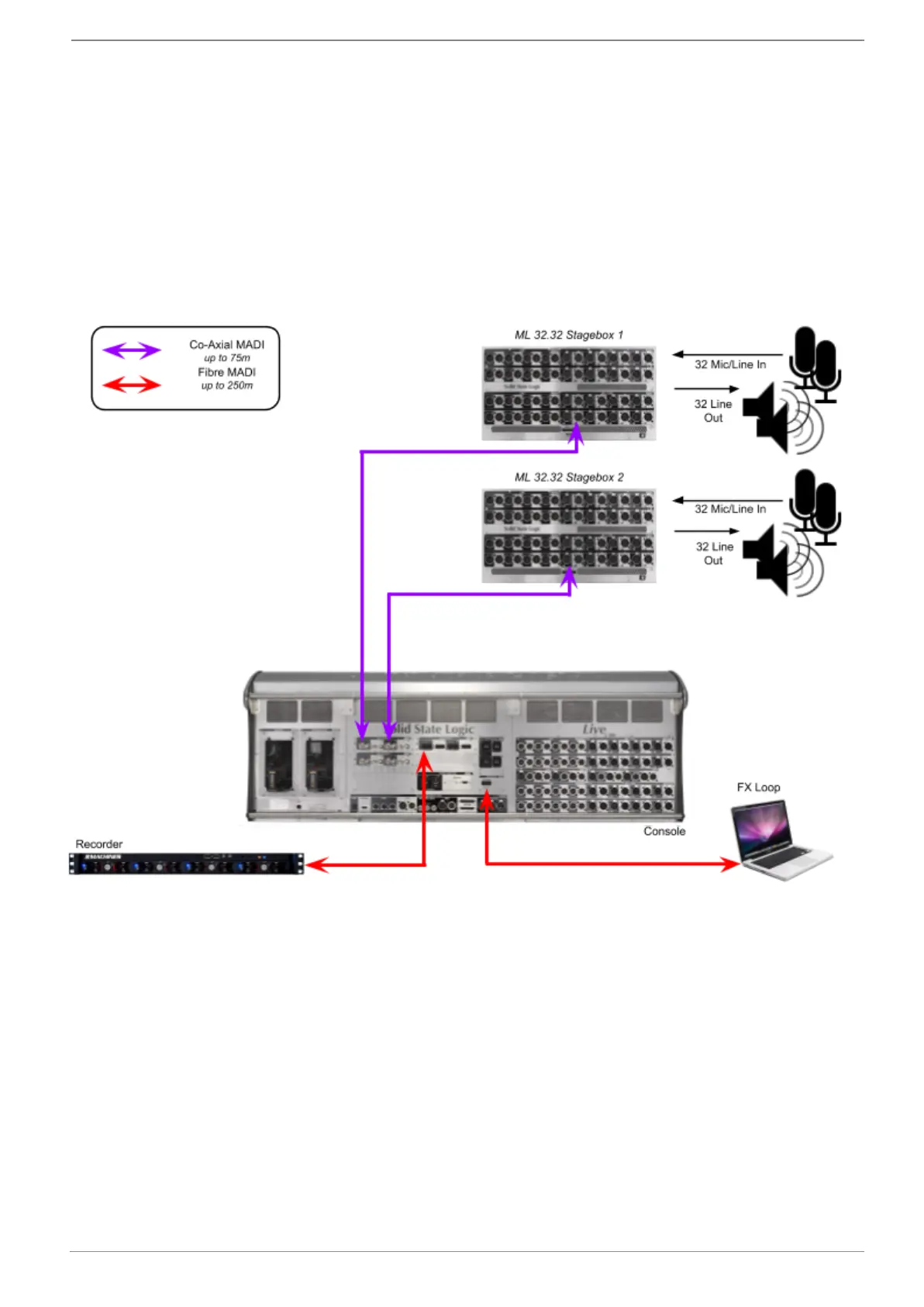

Simple Single System
L500 Plus Control Surface shown with optional local IO and additional Co-ax MADI interface provide
32 analogue IO and 16 AES IO at FOH position. 12 MADI ports plus MADI FX Loop.
2 off ML 32.32 stageboxes provide 64 Mic/Line inputs and 64 line outputs on stage
Additional/different MADI stageboxes can be connected as required.
