Solid State Logic Live L550 User Manual

SSL Live Installation Information
*18 - Video Reference
BNC connectors to IEC 60169-8
75 Ω Characteristic Impedance, Analogue video (1 Vp-p, PAL, NTSC, Composite, B&B)

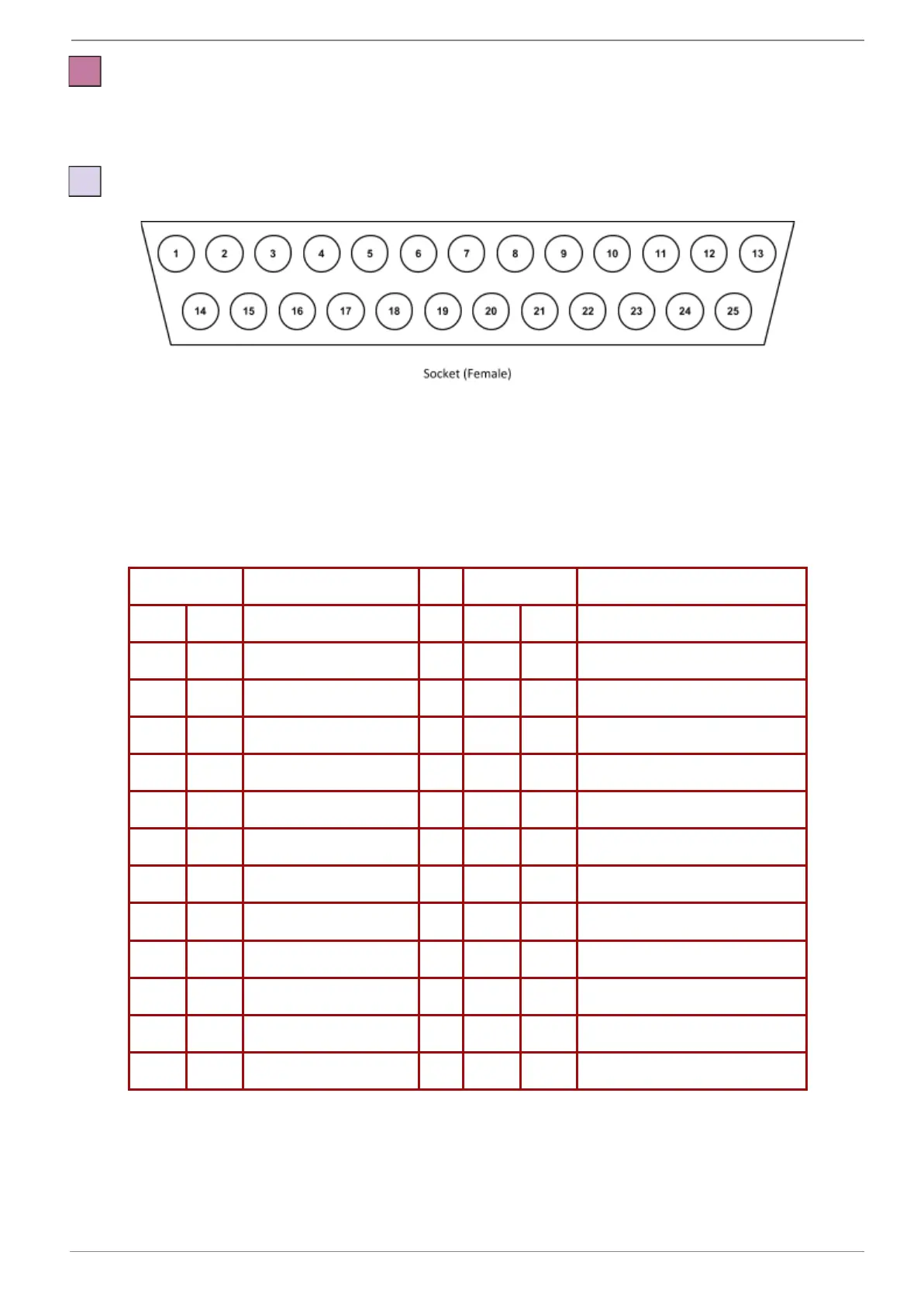

*19a - Stagebox GPIO Connections
Connector Type: 25-Way D-Type Female (Combined Inputs & Outputs)
Dimensions: Cable Dia: 55 x 15 mm (approx.) 8 mm (typical)
Screwlock thread: 440-UNC
6 opto-isolated GP input and 5 relay-closure outputs
GPIO Connector Pinout
GP Output - D-type Female
Pin
Description
Pin
Description
1
Input 1A
7
+12V (450mA maximum)
14
Input 1B
20
0V Chassis
2
Input 2A
8
Output 1A
15
Input 2B
21
Output 1B
3
Input 3A
9
Output 2A
16
Input 3B
22
Output 2B
4
Input 4A
10
Output 3A
17
Input 4B
23
Output 3B
5
Input 5A
11
Output 4A
18
Input 5B
24
Output 4B
6
Input 6A
12
Output 5A
19
Input 6B
25
Output 5B
13
+12V (450mA maximum)
www.solidstatelogic.com Page 33 of 43
