39
User Manual
MHT-25~50K series
②

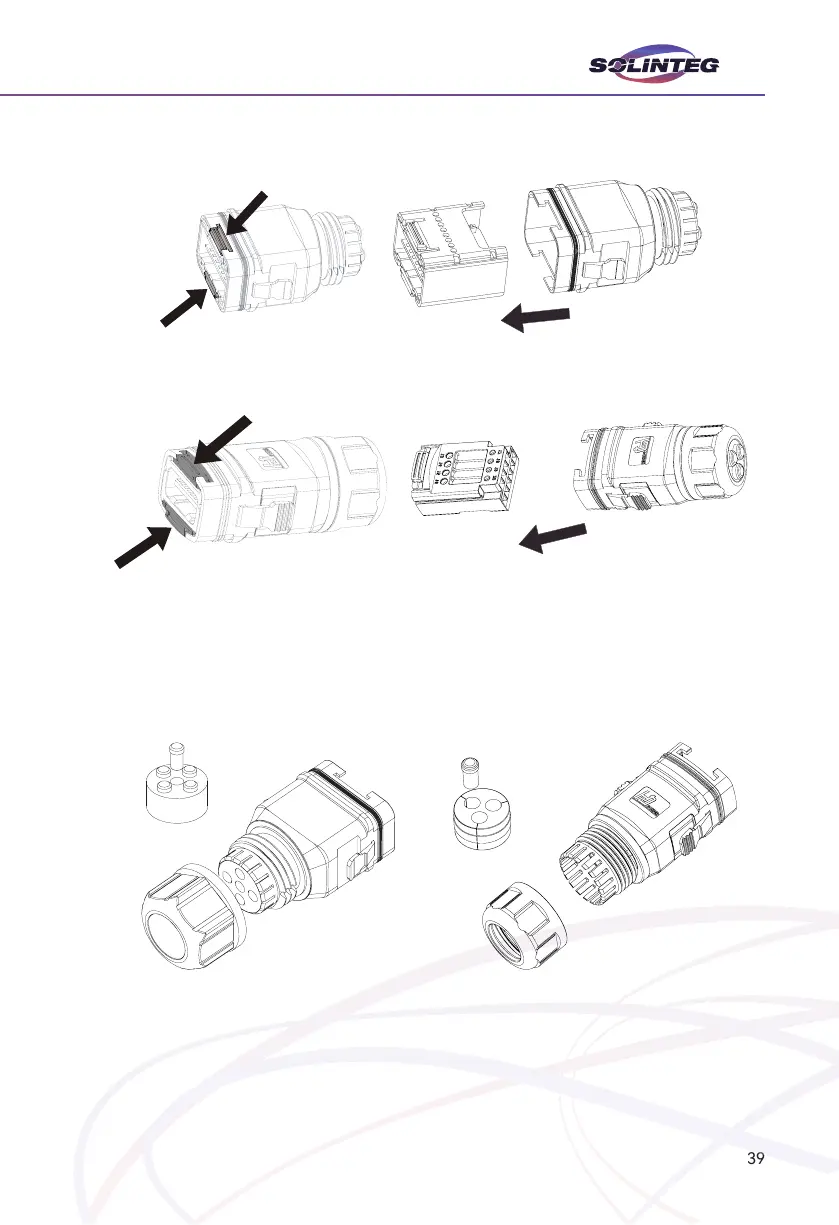

Take out the terminal block.
Figure 5-14
Press
COM2
COM3
③
Remove the seal and lead the cable through the cable gland.
Figure 5-15
COM2 COM3
Press
