8.3 Adjusting the cutting line
When using a semi-automatic nylon head:
(schematic diagram)
Whilst the brushcutter is running without load, but
with rotating nylon head, lightly push the nylon
head several times onto ground with growth cover.
The cutting line will be dispensed in stages. With
each action, approx. 30 mm line will be dispensed.
The line trimming blade will correct any excess
length.
When the cutting line is fully spent, you can replace
it with line available under part no. 6900942
(accessory).
8.4 Sectional shaft
Model 129LTS and 129BTS
For transport and to save space during storage,
models 129LTS and 129BTS are equipped with a
sectional shaft. In addition, model 129LTS is
available with many different accessory sets, for
which the working tool is already pre-assembled
onto the lower section of the shaft. Simply replacing
the lower shaft section enables a quick conversion
(see chap. 10. "Accessories").
To split the two shaft sections:
• Release tension screw (1).
• pull out the fixing pin (2), turn fixing pin into
holding position.
• Pull the lower shaft section with the drive shaft
off the clutch coupling.
During assembly, the shaft in the lower section of
the shaft tube must mesh with the square upper
part of the drive shaft. If necessary, the cutting tool
may need to be slightly turned. The fixing pin (2)
must audibly lock into position, due turning the
fixing pin, in the shaft tube holes (3).
Then tighten tension screw (1).

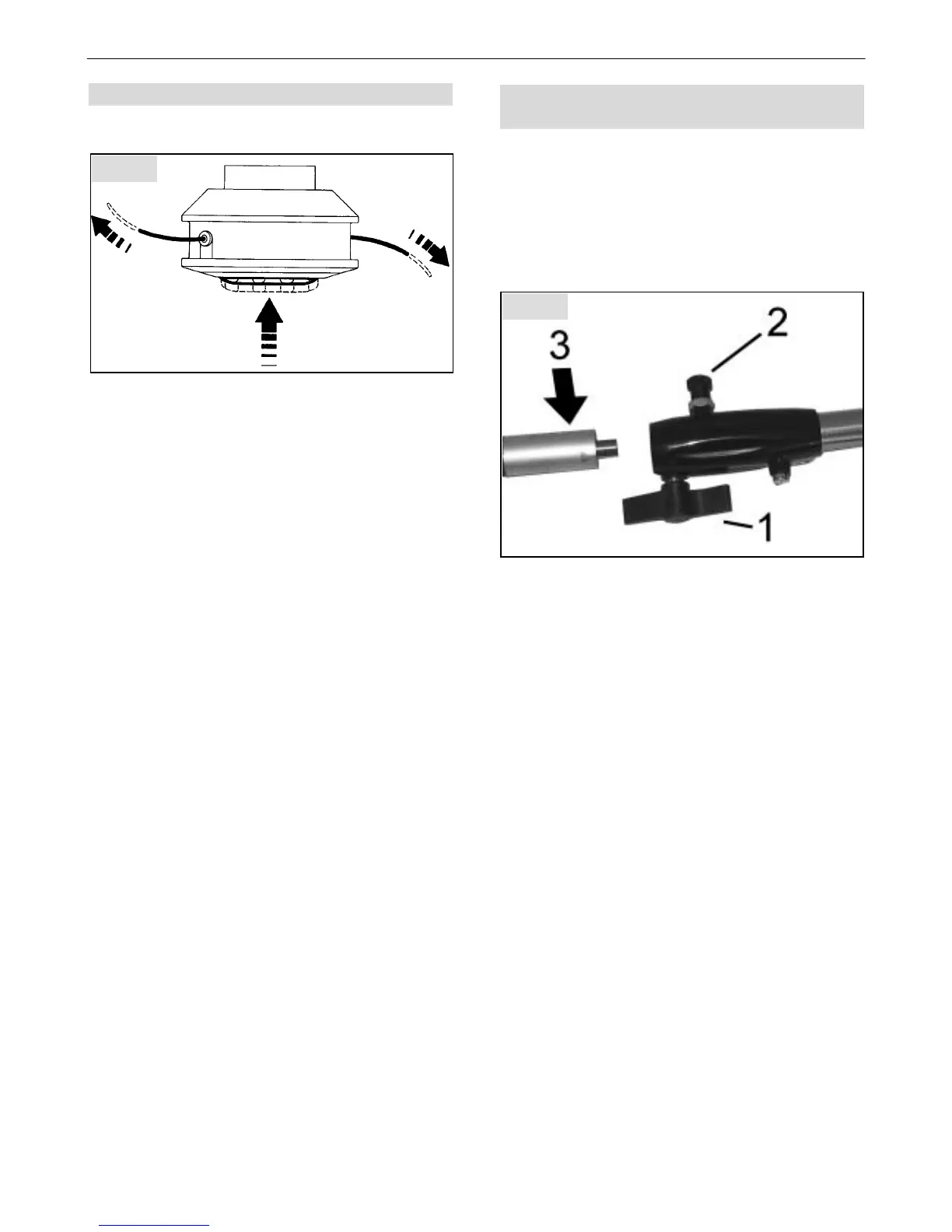

Fig. 14
