Standard delivery ; Control and function elements
ENGLISH 8
3. Standard delivery
• Brushcutter partially assembled; the following components are supplied separately and require assembly
• Handle subject to model and all parts required to complete the assembly
• Shoulder strap
• Shield, protective bar, line trimmer with screw and all parts required to assemble the shield
• Cutter: (subject to model)
! Grass cutter blade or
! Nylon head
• All assembly parts required to fit the grass cutter blade and the nylon head (all models)
• Tools: combination spanner, retaining pin and screw driver
• Instruction manual

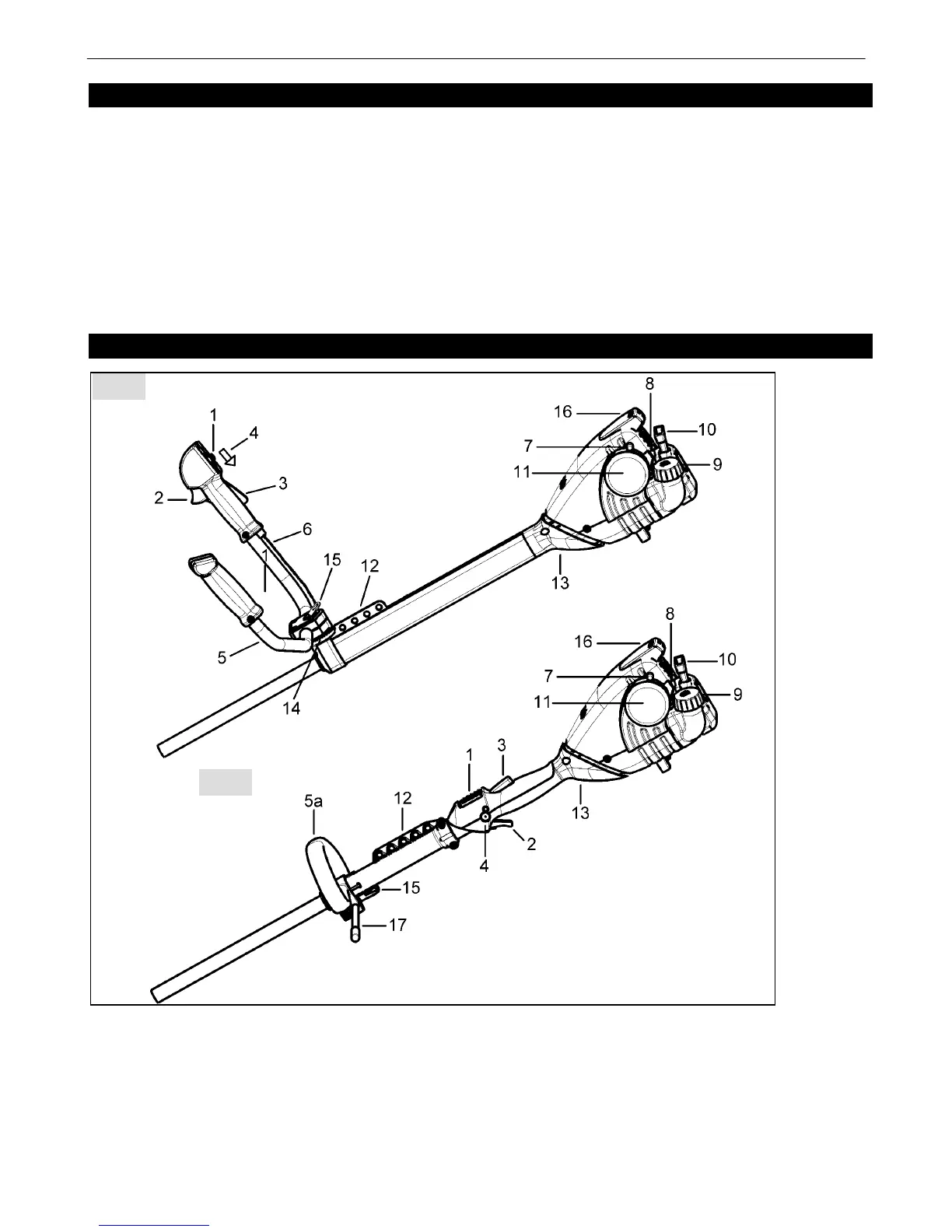

4. Control and function elements
121B, 129B,
129BTS
121L, 129L,
129LTS
1 Stop-switch
2 Throttle lever
3 Throttle lock
4 Half throttle lock
5 Bicycle handlebar
5a Loop handle
6 Throttle Bowden cable
7 Choke lever
8 Primer
9 Fuel cap
10 Starter grip
11 Air filter cover
12 Harness rail
13 Anti-vibration system
14 Handle support
15 Quick acting tension screw
16 Sparkplug cap
17 Safety stop
Fig. 1
Fig. 2
