Preparing the equipment for use
ENGLISH 10

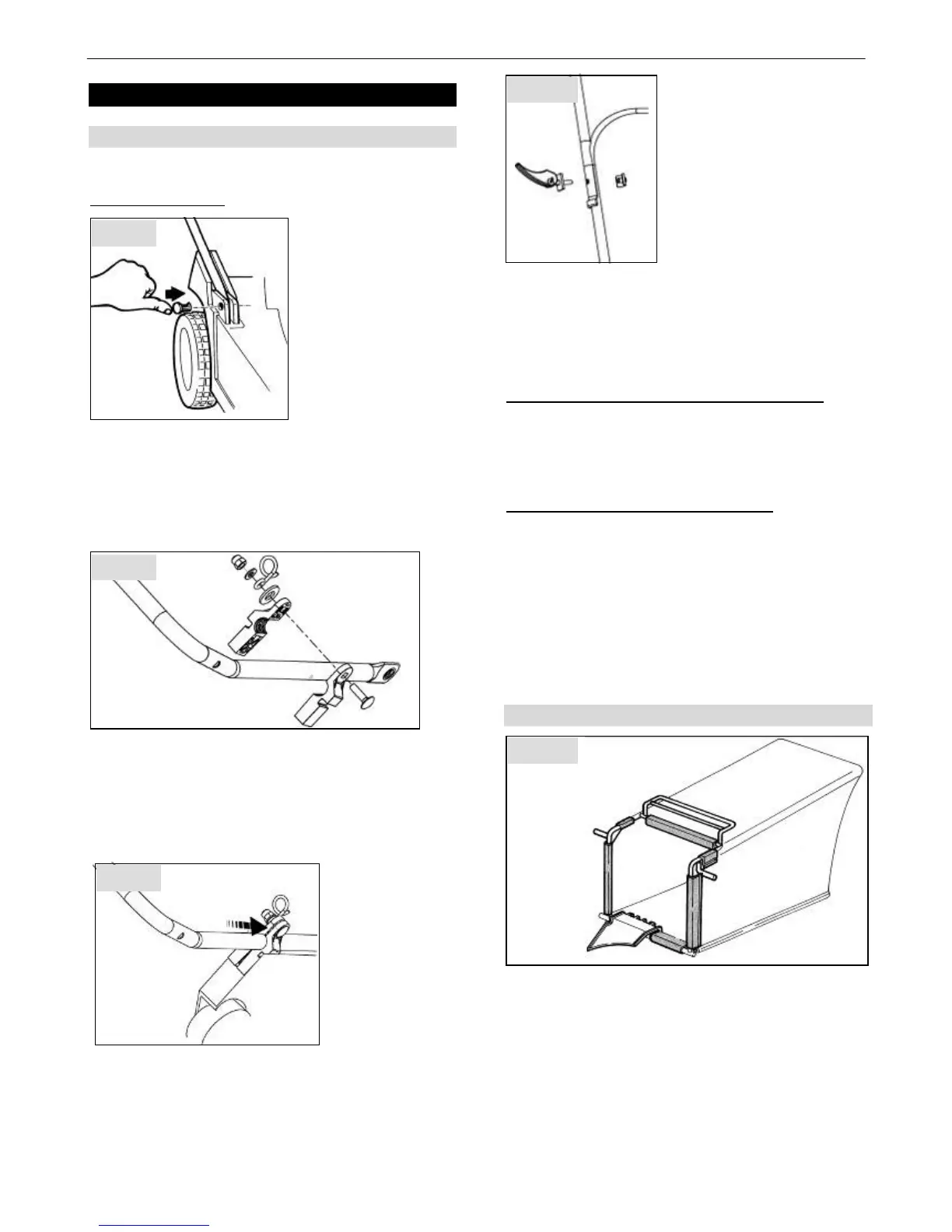

7. Preparing the equipment for use
7.1 Assembly
Your lawnmower will be ready for use in only a few
steps.
Securing the handle:
For more practical
transport, the support
bolts for the lower
handle are not fitted.
• Position the upper handle, which is factory-fitted with
Bowden cables (incl. inner cable), in a forward
direction on the floor.
• Position the lower handle on the l.h. and r.h. side
over the holes provided in the mower base fitting.
• Push in the support bolts into the mower base fitting
and the lower handle.
• Release the loosely assembled clamping parts by
undoing the cap. nuts.
• Initially lightly secure the clamping parts via the
lower handle part. For this, secure the bowden cable
guide hooks, so that they run along the inside the of
the handle.
• Fit the clamping parts on the l.h. and r.h. side .ush
with the lawnmower housing, then tighten the cap
nuts.
• Set the upper handle onto
the lower handle, aligning the
holes in both handle parts.
• Insert the M8 clamping nuts
from the inside into the holes
of the lower handle.
• Thread the opened tensioning lever from the outside
through the holes in the upper handle into the handle
clamping nuts, until both handles as tightly locked
together, when the tensioning lever is closed
upwards. If required, either tighten or relax the
tensioning lever by one full turn.
Folding the handle again for transport or storage:
When folding the handle, open both locking screws
upwards and tilt the upper handle forward.
Note: On lawnmowers with self-drive, push the
control bar (2) against the handle, before folding the
handle over, to prevent damaging the spark plug
Starter handle inserted in the cable guide
Release the engine brake by bushing brake lever, A (1),
to the handle. Put the starter grip (5) in the cable guide
which is located on the upper handle part.
Attention: When folding and unfolding the handle, pay
special attention that the Bowden cables are not bent
and run smoothly..
Caution! Assure that Bowden cables are not caught up
anywhere and that they have not become damaged
during transport!
7.2 Grass Catching Device
Position the plastic guide onto the lower frame and
push it down, until the guide clocks into place.
Caution! Assemble and disassemble grass catching
device only when engine is shut off!
Fig. 2a
Fig. 2b
Fig. 2c
Fig. 3a
Fig. 2d
