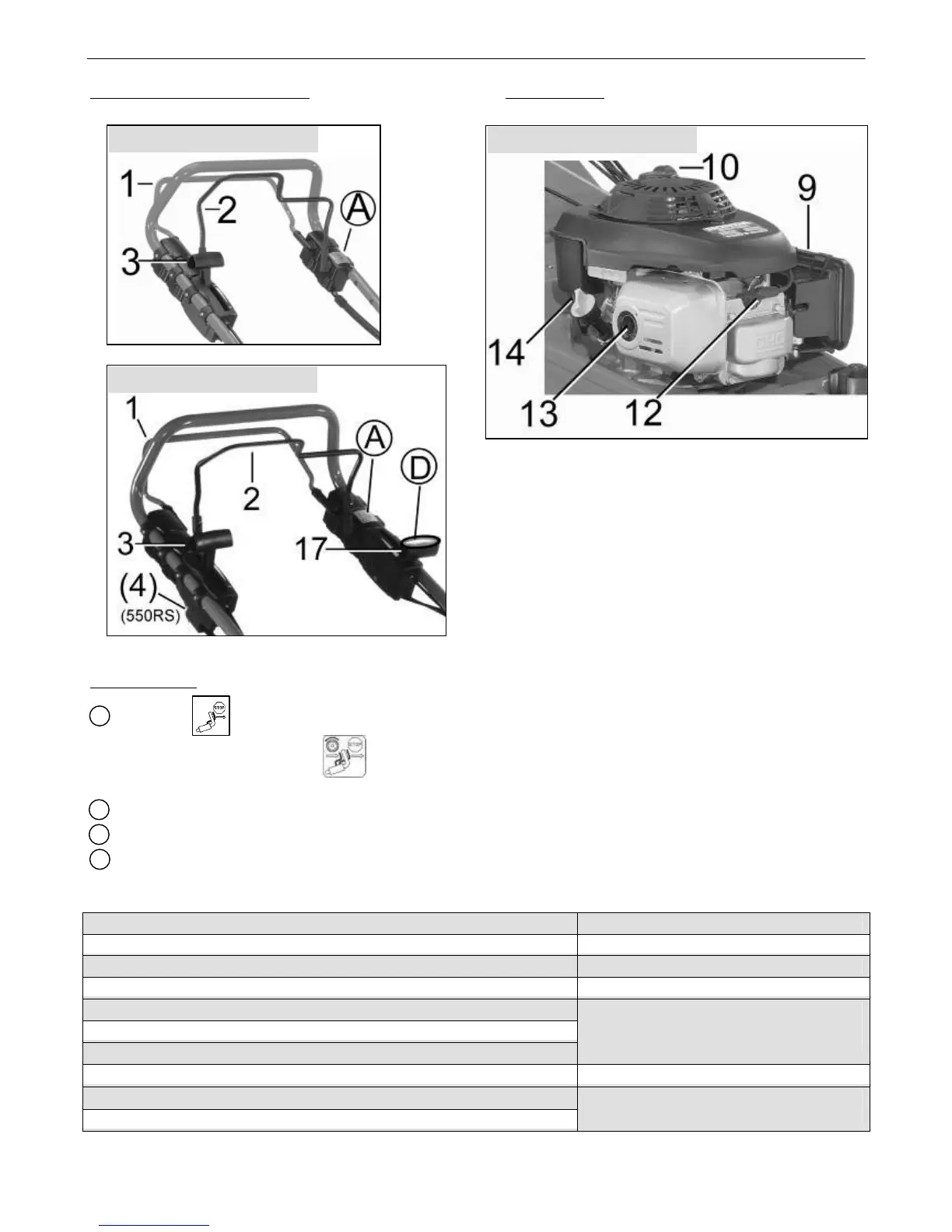

Control and function elements
ENGLISH 5
Controls that are subject to model: Engine 550HRl
Adhesive labels:
A Model 550: To stop the engine Î release bow handle (1)
Model 550R, 5506HR, 550RS To start the self-drive Î pull bow handle (2) against the tubular handle
: To stop the engine Î release bow handle (1)
B
Fill the engine with oil before taking the machine into use
C
Never place the lawnmower on its side
D Adjust the drive speed via the Vario drive lever (item 17 - model 550HR, 550RS) Î only with the engine running
1. Brake lever, engine brake 11. Central height adjustment
2. Drive lever, self-propelled (550R, 550HR, 550RS) 12. Spark plug
3. Throttle lever 13. Muffler
4. Key for electrical start-up (550RS) 14. Oil filler pipe
5. Starter grip
6. Grascatching device
7. Ejection shield
15. - Battery (550RS)
and
- Gear box (550R, 550HR, 550RS)
• Pinning lever
16. Lower handle
• Air filter
8. Fuel tank
17. Control lever Variable-Gearbox
(550HR, 550RS)
Fig. 1d: Motor 550HR
Fig. 1c: 550RS, 550HR
Fig. 1b: 550R
