Fitting the Oven Into the Kitchen Unit

• Fit the oven into the space provided in the kitchen unit;

it may be fitted underneath a work top or into an

upright cupboard. Fix the oven in position by screwing

into place, using the two fixing holes in the frame.

To locate the fixing holes, open the oven door and look

inside. To allow adequate ventilation, the measurements

and distances adhered to when fixing the oven.

 IMPORTANT: If the oven is to work properly, the kitchen

housing must be suitble. The pnels of the kitchen

unit tht re next to the oven must be mde of  het

resistnt mteril. Ensure tht the glues of units tht re

mde of veneered wood cn withstnd tempertures

of t lest 120º C. Plstics or glues tht cnnot withstnd

such tempertures will melt nd deform the unit.

• Once the oven hs been lodged inside the unit, electricl

prts must be completely insulted. This is  legl sfety

requirement. All gurds must be firmly fixed into plce so

tht it is impossible to remove them without using specil

tools. Remove the bck of the kitchen unit to ensure tht

n dequte current of ir cn circulte round the oven.

The hob must hve  rer gp of t lest 45mm.

NOTE: The number of accessories included depends on the particular appliance purchased.

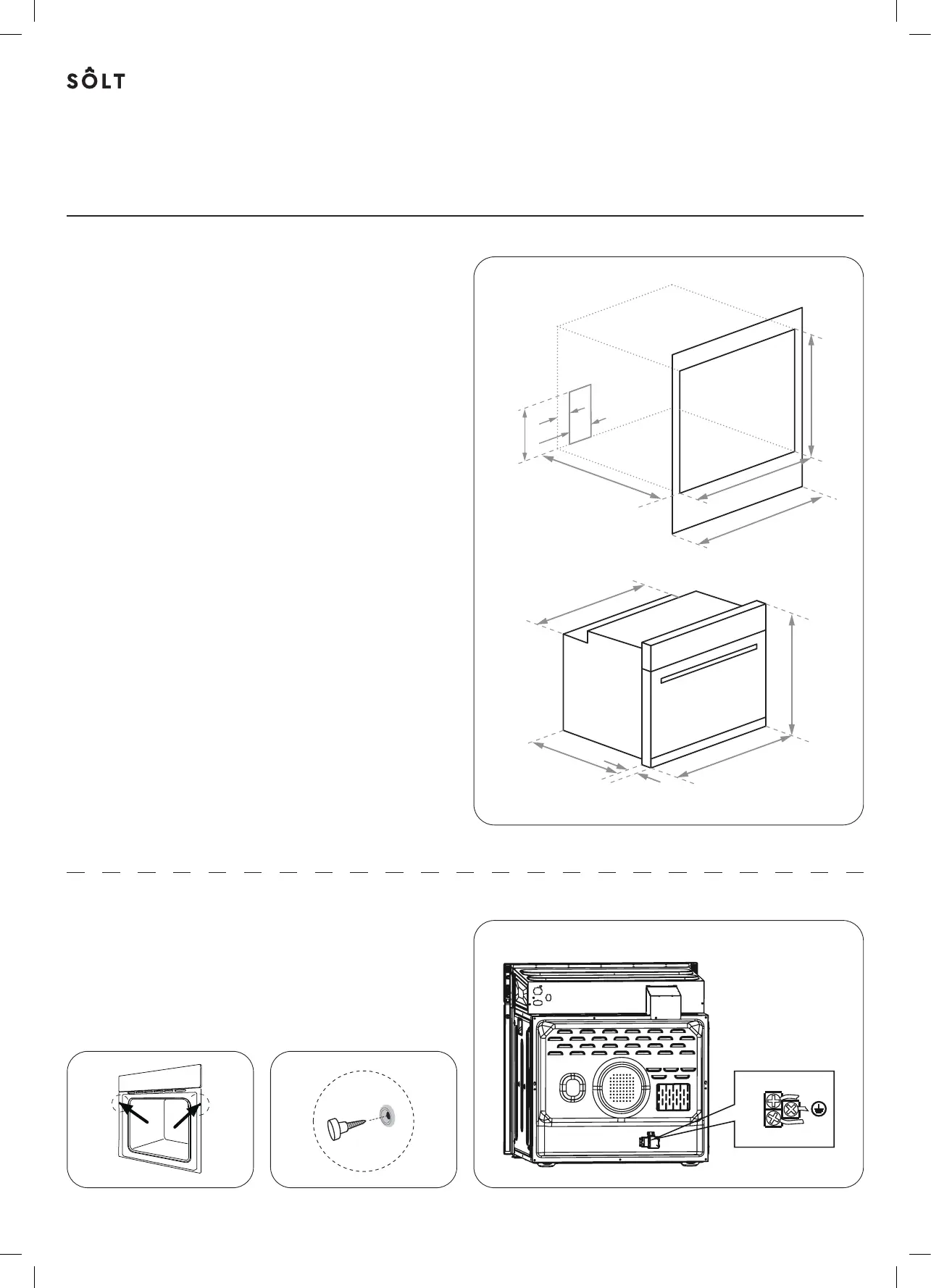

INSTALLATION

570

min.

560

606

600

250

100

Remark:

1.Only plus deviations are admissible for all dimension.

2.The cabinet is not include the power switch or socket.

VENTILATING OPENINGS

CONNECTION OF THE OVEN

Ventilating openings

When cooking is finished, if the temperature of ventilating openings is over 70 degree, the cooling

fan will continue working. The cooling fan will not stop working until the temperature becomes

lower than 60 degree.

555

595

560

Securing the Oven to the Cabinet

1. Carefully fit the oven into the cabinet recess.

2. Open the oven door and find the two screw holes.

3. Fix the oven to the cabinet with two screws.

Importnt Notes

• The cavity is not to include the power switch or socket.

• The oven & cabinet dimensions are in millimeters (mm).

BULB REPLACEMENT

For replacement, process as follows:

1> Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.

2> Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace

the bulb with a new one of the same type.

3> Screw the glass lamp cover back in place.

NOTE: Only use 25-40W/220V-240V , T300°C halogen lamps.

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side

rail is imperative. Shelves and the pan only can be used between the first and fifth layers.

The shelves should use with the right direction, it will ensure that during careful removal of the

shelf or tray, hot food items should not slide out.

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.

2. Open the oven door and determine the location of the mounting

screw holes.

Fix the oven to the cabinet with two screws.
