Soltec HM-102S User Manual

3.
90'!»

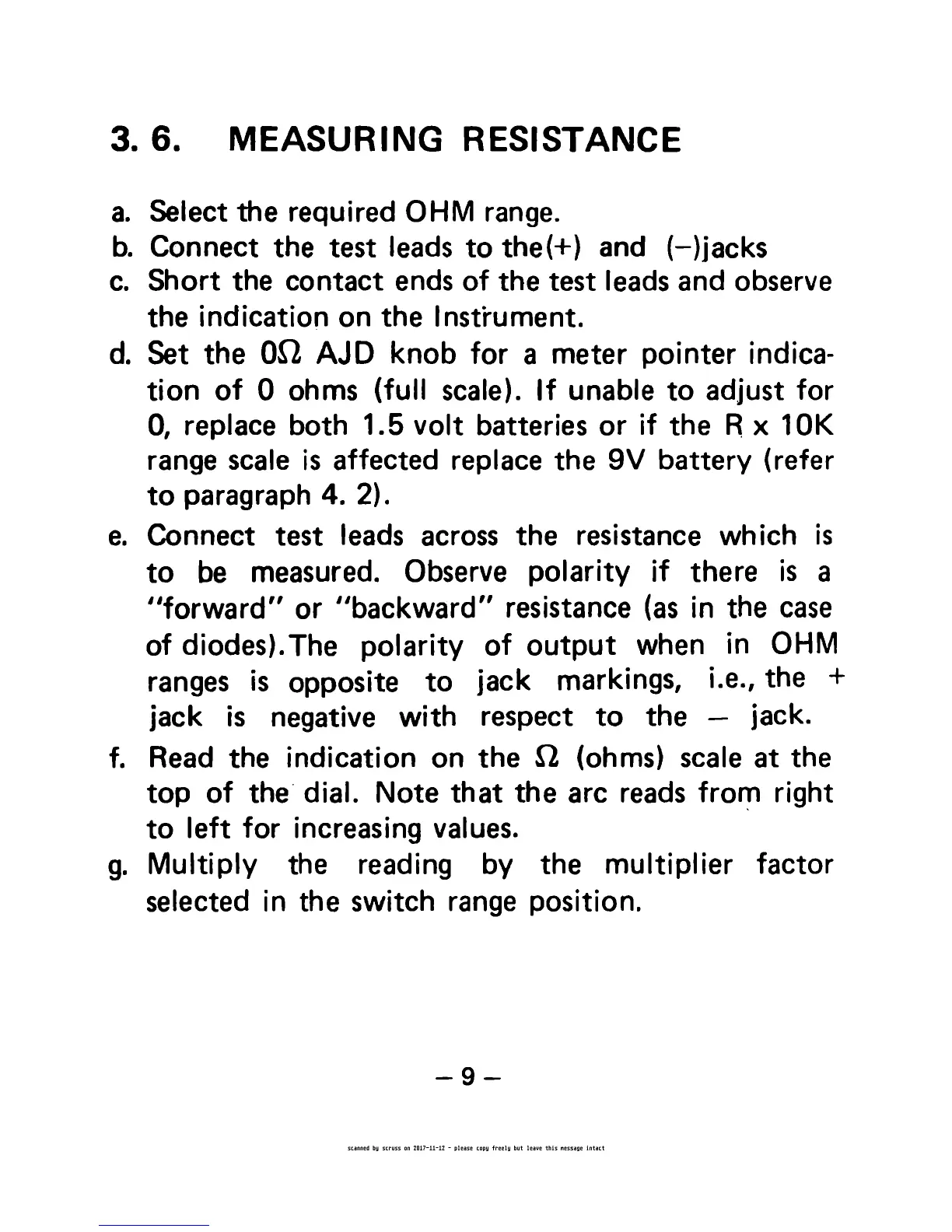

6. MEASURING R ESISTANCE
. Select the required OHM range.
. Connect the test leads to the(+) and (—)jacks
Short the contact ends of the test leads and observe
the indication on the Instrument.
. Set the 052 AJD knob for a meter pointer indica-
tion of 0 ohms (full scale). If unable to adjust for
0, replace both 1.5 volt batteries or if the R x 10K
range scale is affected replace the 9V battery (refer
to paragraph 4. 2).
Connect test leads across the resistance which is
to be measured. Observe polarity if there is a
“forward" or "backward" resistance (as in the case
of diodes).The polarity of output when in OHM
ranges is opposite to jack markings, i.e., the +
jack is negative with respect to the — jack.
Read the indication on the 52 (ohms) scale at the
top of the dial. Note that the arc reads from right
to left for increasing values.
. Multiply the reading by the multiplier factor
selected in the switch range position.
scammed by scruss nm Zfll7'll'lZ ' nlease Eng! freely but leave this message tttttt

Soltec HM-102S Specifications

General

Brand	Soltec
Model	HM-102S
Category	Measuring Instruments
Language	English
