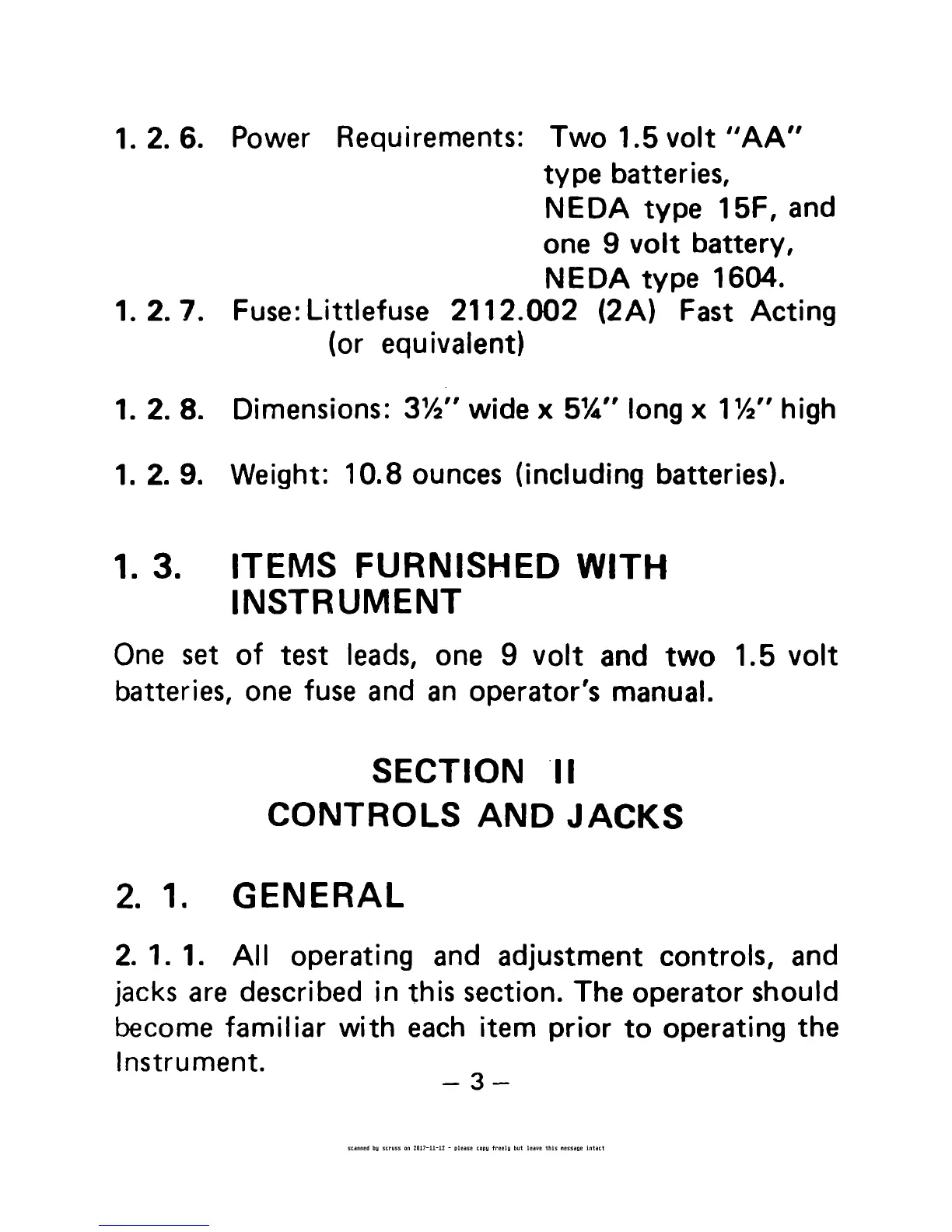

1. 2. 6. Power Requirements: Two 1.5 volt "AA"
type batteries,
NEDA type 15F, and
one 9 volt battery,
NEDA type 1604.
1. 2. 7. FusezLittlefuse 2112.002 (2A) Fast Acting
(or equivalent)
1. 2. 8. Dimensions: 31/2” wide x 51/4" long x 11/2" high
1. 2. 9. Weight: 10.8 ounces (including batteries).
1. 3. ITEMS FURNISHED WITH
INSTRUMENT
One set of test leads, one 9 volt and two 1.5 volt
batteries, one fuse and an operator's manual.
SECTION 'II
CONTROLS AND JACKS
2. 1. GENERAL
2.1.1. All operating and adjustment controls, and
jacks are described in this section. The operator should
become familiar with each item prior to operating the
Instrument.
