Soltec HM-102S User Manual

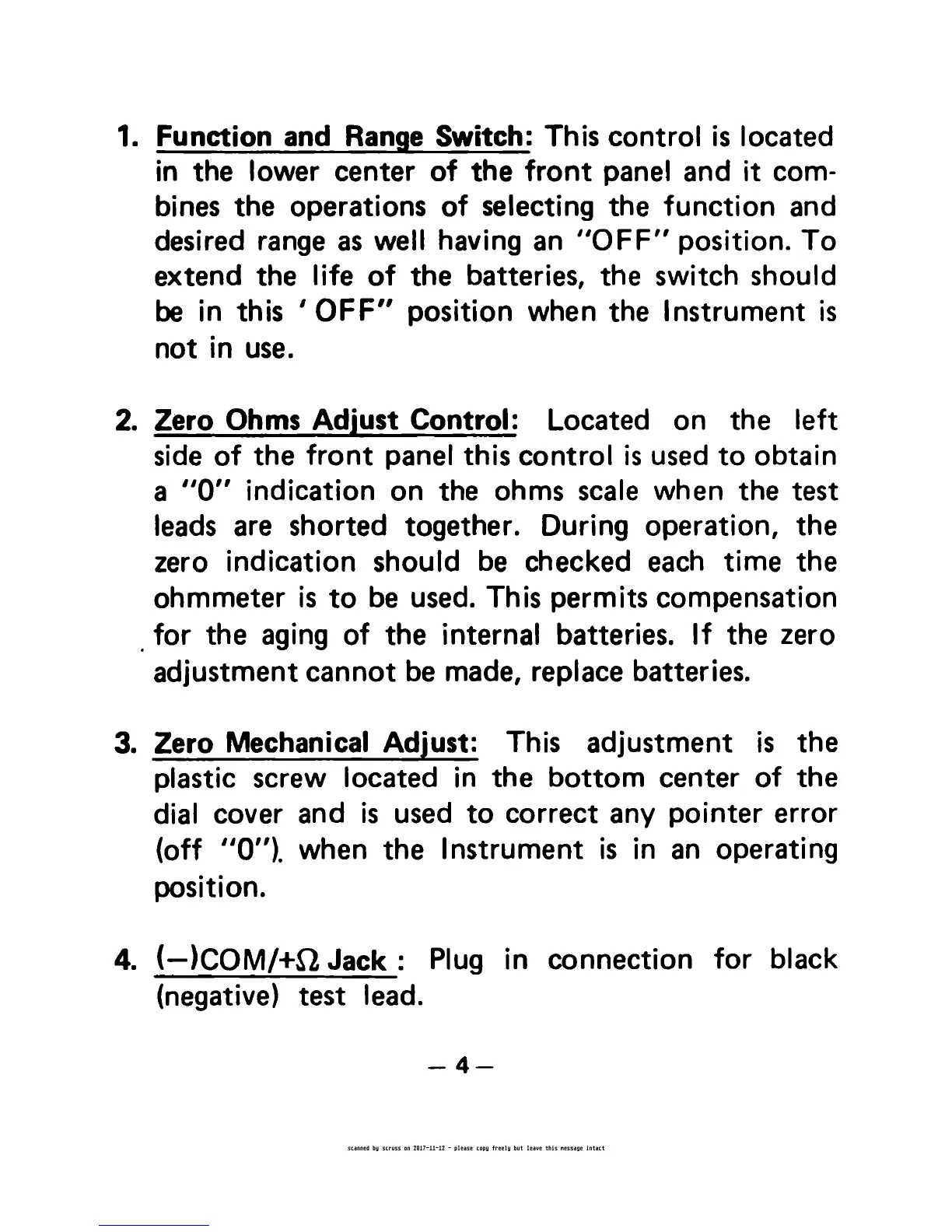

1. Function and Range Switch: This control is located
in the lower center of the front panel and it com-
bines the operations of selecting the function and
desired range as well having an ”OFF" position. To
extend the life of the batteries, the switch should
be in this ' OFF" position when the Instrument is
not in use.
2. Zero Ohms Ad'mst Control: Located on the left
side of the front panel this control is used to obtain
a "0" indication on the ohms scale when the test
leads are shorted together. During operation, the
zero indication should be checked each time the
ohmmeter is to be used. This permits compensation
.for the aging of the internal batteries. If the zero
adjustment cannot be made, replace batteries.
3. Zero Mechanical Adjust: This adjustment is the
plastic screw located in the bottom center of the
dial cover and is used to correct any pointer error
(off “0"), when the Instrument is in an operating
position.
4. (—)COM/+Sl Jack: Plug in connection for black
(negative) test lead.
scammed by scruss nm Zfll7'll'lZ ' nlease Eng! freely but leave this message tttttt
