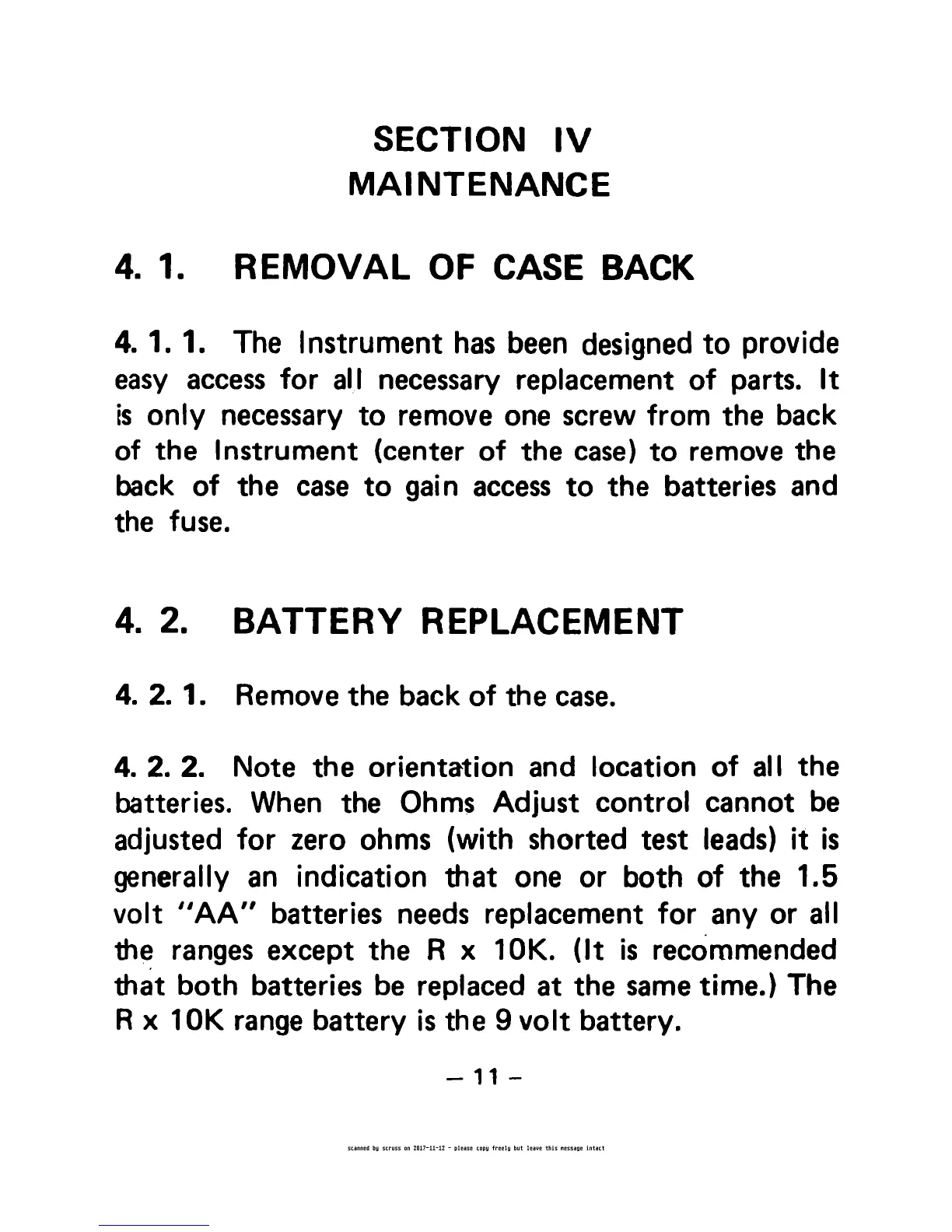

SECTION IV
MAINTENANCE
4. 1. REMOVAL OF CASE BACK
4. 1. 1. The Instrument has been designed to provide
easy access for all necessary replacement of parts. It
is only necessary to remove one screw from the back
of the Instrument (center of the case) to remove the
back of the case to gain access to the batteries and
the fuse.
4. 2. BATTERY REPLACEMENT
4. 2. 1. Remove the back of the case.
4. 2. 2. Note the orientation and location of all the
batteries. When the Ohms Adjust control cannot be
adjusted for zero ohms (with shorted test leads) it is
generally an indication that one or both of the 1.5
volt "AA” batteries needs replacement for any or all
the ranges except the R x 10K. (It is recOmmended
that both batteries be replaced at the same time.) The
R x 10K range battery is the 9 volt battery.
_11_.
scammed by scruss nm Zfll7'll'lZ ' nlease Eng! freely but leave this message tttttt
