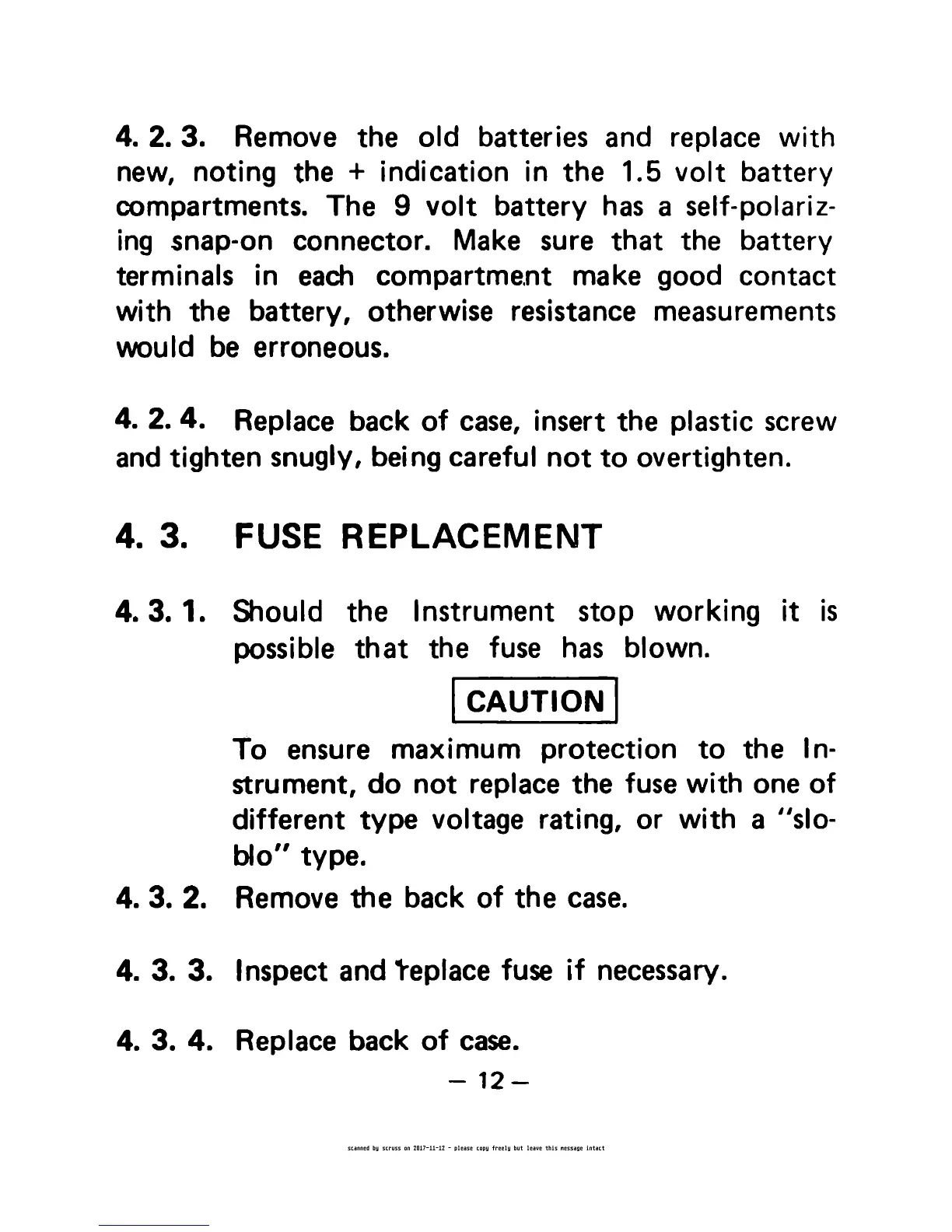

4.2.3. Remove the old batteries and replace with
new, noting the + indication in the 1.5 volt battery
compartments. The 9 volt battery has a self-polariz-
ing snap-on connector. Make sure that the battery
terminals in each compartment make good contact
with the battery, otherwise resistance measurements
would be erroneous.
4. 2. 4. Replace back of case, insert the plastic screw
and tighten snugly, being careful not to overtighten.
4. 3. FUSE REPLACEMENT
4.3.1. Should the Instrument stop working it is
possible that the fuse has blown.
To ensure maximum protection to the In-
strument, do not replace the fuse with one of
different type voltage rating, or with a “slo-
blo" type.
4. 3. 2. Remove the back of the case.
4. 3. 3. Inspect and Teplace fuse if necessary.
4. 3. 4. Replace back of case.
_ 12 _
