Soltec HM-102S User Manual

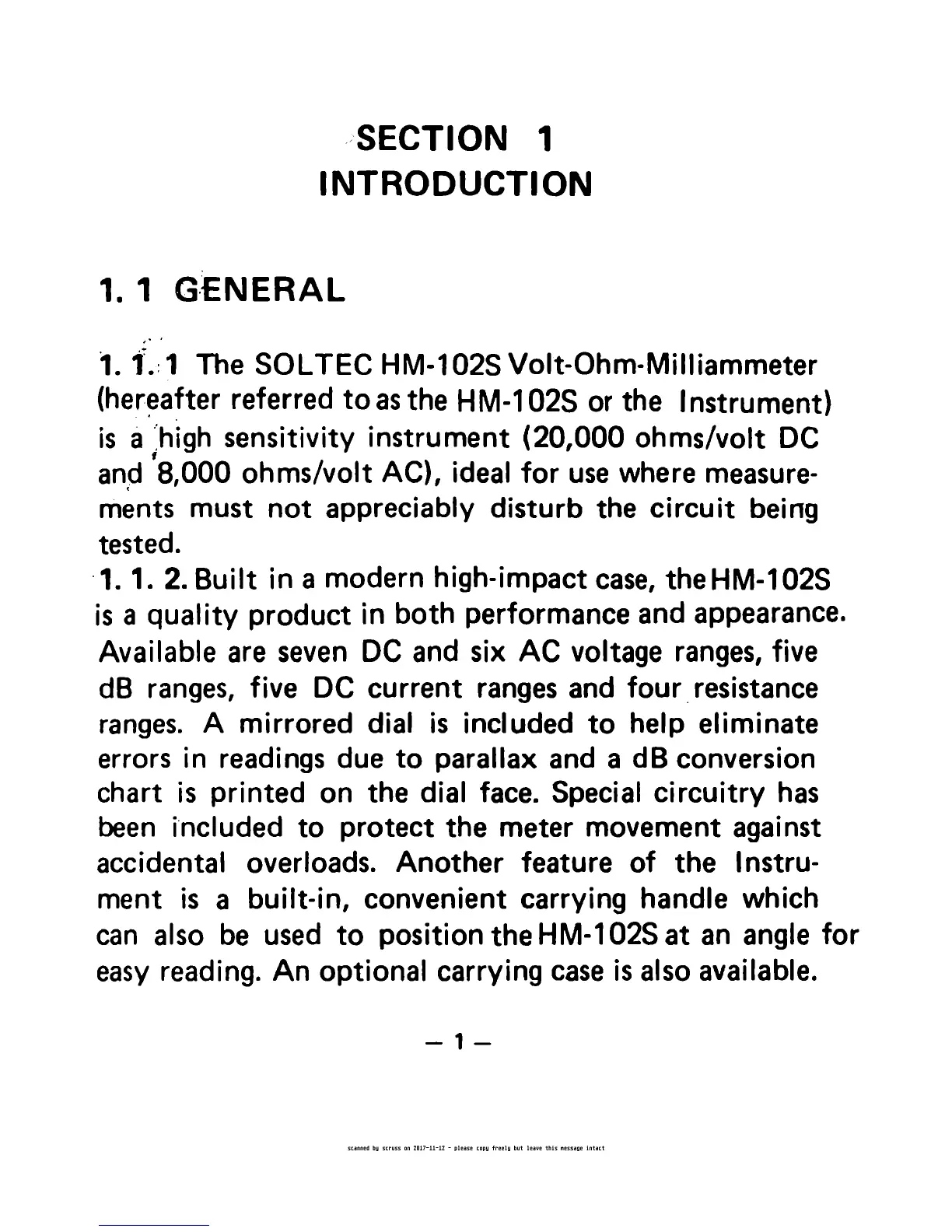

SECTION 1
INTRODUCTION
L1 GENERAL
"1.131 The SOLTEC HM-102S Volt-Ohm-Milliammeter
(hereafter
referred
to
as
the
HM-102S
or
the
Instrument)
is a ;high sensitivity instrument (20,000 ohms/volt DC
and 8,000 ohms/volt AC), ideal for use where measure-
ments must not appreciably disturb the circuit being
tested.
'1. 1. 2. Built in a modern high-impact case, the HM-102S
is a quality product in both performance and appearance.
Available are seven DC and six AC voltage ranges, five
dB ranges, five DC current ranges and fourresistance
ranges. A mirrored dial is included to help eliminate
errors in readings due to parallax and a dB conversion
chart is printed on the dial face. Special circuitry has
been included to protect the meter movement against
accidental overloads. Another feature of the Instru-
ment is a built-in, convenient carrying handle which
can also be used to position the HM-102S at an angle for
easy reading. An optional carrying case is also available.
scanned by scruss nn Zfll7'll'lZ ' nlease EDD! freely but leave this message tttttt
