Disassembly

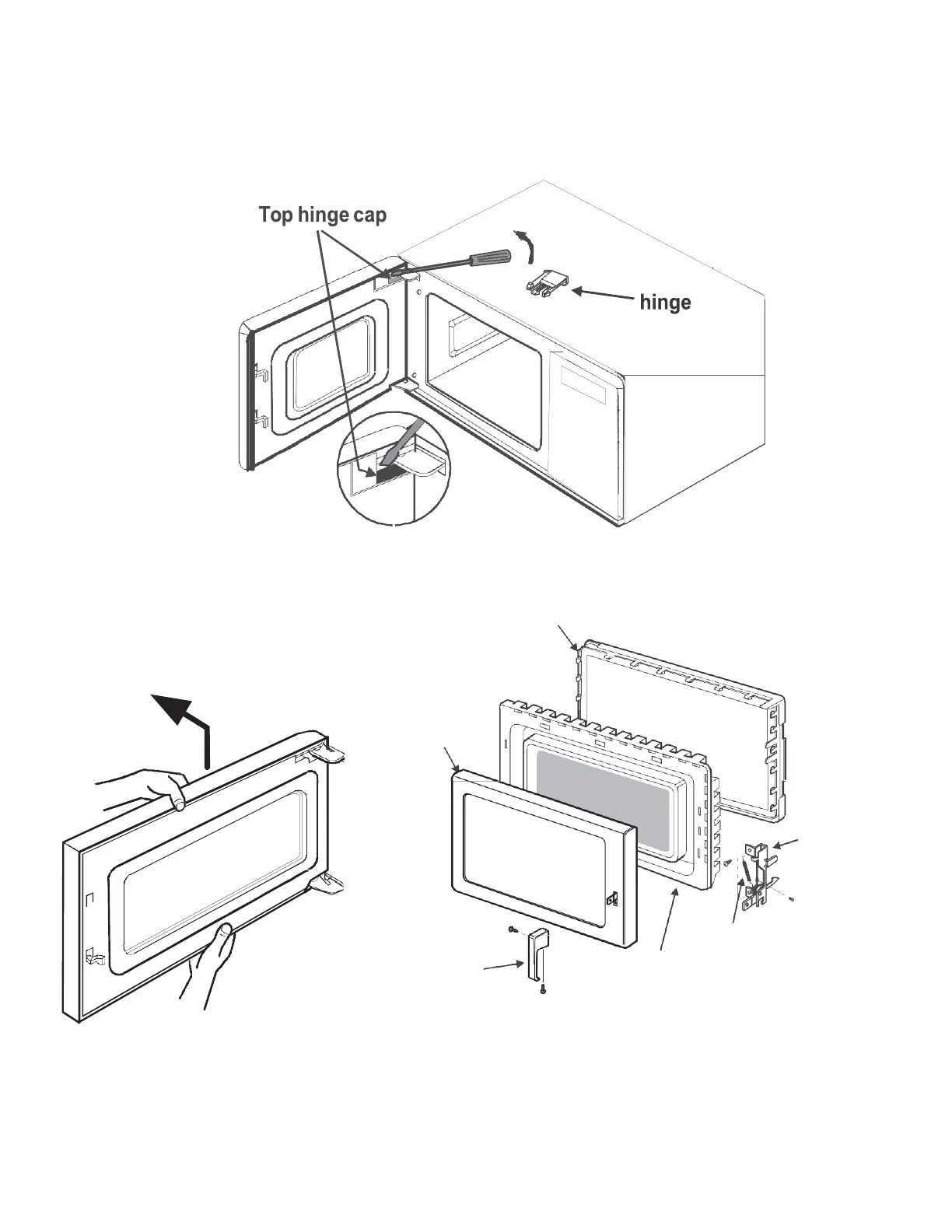

Door Removal
1.
Disconnect power to oven.
2.
Open oven door, remove top hinge cap, and slowly lift door to disengage the hinge pins at top and bottom.
3.
To reinstall door, place top pin into slot first, then align bottom pin.
4.
Reinstall top hinge cap.
Choke
cover
Outer
Door
panel
Latch
assembly
* Door
Handle
Door frame/
Spring
choke assembly
* Apply thread lock compound to threads, tighten side screw first.
